ZP 03 wall-mounted stainless steel urinal trough with with a central waste outlet
ZP 03 are stainless steel urinal troughs in various widths intended for sanitary facilities with a higher risk of damage. ZP 03 is a wall-mounted version of the trough with with a waste in the center. The standard models includes water distribution and durable anti-vandal stainless steel nozzles. Time-controlled COS flushing is recommended for flushing the gutter. It is also possible to supply another type of flushing on request – e.g. sensor flushing.
The troughs are manufactured in 3 basic standard widths. Other widths can be supplied on request according to your needs, the maximum possible width is 2500 mm. The trough is typically designed with a waste in the center of the trough. The waste siphon is protected by a cover.
The gutter is made of ČSN 17240 (AISI 304) material, 1.5 mm thick.
Würth products – preservation ( order no. 0893 121 K), cleaning ( order no. 893 121 1).
Complete delivery
- stainless steel trough with rinsing and water inlet
- siphon
- stainless steel siphon cover
- small assembly material
| water inlet | G 1/2“ internal thread |
| waste | outlet 50 mm + extrusion (for 6/4" waste trap) |
| weight | according to type : 29 kg; 38.5 kg; 47.5 kg |
| sheet thickness | 1,5 mm |
| material | ČSN 17 240, AISI 304 |

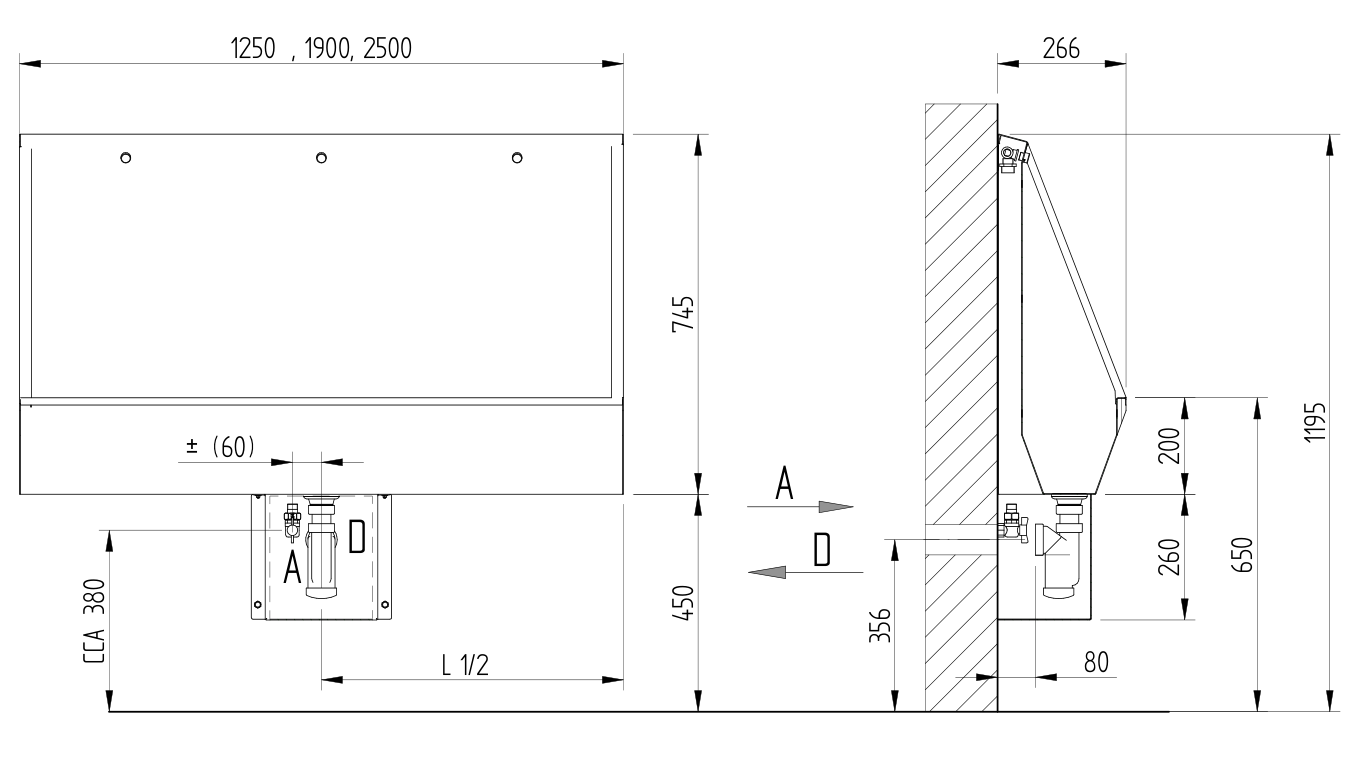

- Water supply prepared according to the schematic.
- Waste outlet d = 50 mm prepared.
- A – Water inlet
- D – Waste outlet
