AFO 03 stainless steel drinking fountain

AFO 03 is a new drinking fountain with an attractive design intended for indoor as well as outdoor use. The fountain is fitted with a manual press valve that allows its easy use. The water flosws only when the valve is pressed and after its release there is a short adjusted time to rinse out the jet. The conical body gives the fountain an interesting shape and makes it a suitable complement to the interior of public buildings. A good combination of brushed and sandblasted surface finishes creates a special look of the fountain.
The fountain is manufactured from the stainless steel AISI 304. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Package contents

  • Stainless steel drinking fountain
  • Press valve with nozzle
  • Water supply hose with ball valve
  • Outlet with waste trap
  • Anchoring material
Dimensions 900 x d 300 (top), d 200 (bottom) mm
Water inlet G 1/2“
Outlet d = 40 mm
Material AISI 304
Water pressure 2 - 6 Bar (recommended 3 Bar)

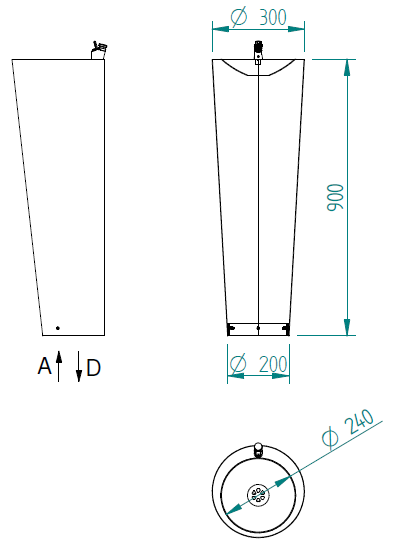

  • Set-up water supply pipe G 1/2" according to the scheme
  • Set-up outlet d = 40 mm according to the scheme

A – water inlet G 1/2"

D – outlet d = 40 mm


Data for projectants
