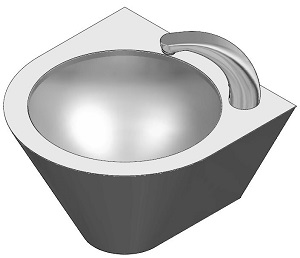

AUM 033 st.steel, wall mounted, conical washbasin

AUM 033 is a stainless steel, wall mounted, washbasin, in conical shape, which can be used as more durable and hygienic substitution of standard ceramic washbasin.
The washbasin AUM 033 forms one design unit with the conical toilet AUZ 01, the conical toilet for disabled users AUZ 01 INV, the bidet AUB 01 and the urinal AUP 03.
The washbasin is standardly delivered with opening d = 33 mm for the tap. Delivery without opening is also possible – must be mentioned with the order.
The washbasin can be also supplied with the automatic tap AUM 3, supplied with either 12 V from source of power supply ZAC or with 6 V from AA batteries.
The tap can be connected to one premixed water; to hot and cold water; or with thermostatic valve. Also other suitable taps from the AZP production range can be supplied (must be consulted with our technician first).
The washbasin is manufactured from the stainless steel AISI 304. For cleaning we recommend WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1). For cleaning of chrome-plated parts we recommend Larrin cleaning detergent.

ZAC – source of power supply 12 V, 50 Hz
other type of water tap (e.g. AUM 22)
other type of material – st. steel AISI 3016

Radius of sensor automatically adjusted
Water inlet G 1/2“
Outlet d = 40 mm
Power supply 12 V, 50 Hz (AUM 033.xx)
6 V DC (AUM 033.xB)
Power requirement 10 VA (6 VA) - according to the version type
After-flow period 0 – 4 s (set by producer to 1 s)
Time of water flow (Start/Stop function) 5 – 100 s in 5 s steps (set by producer to 15 s)
Water pressure 1 - 10 Bar (AUM 033.xx)
2 - 8 Bar (AUM 033.xB)
Diameter of installation opening in washbasin min. 33 mm, max. 38 mm
Recommended source of power supply ZAC 1/20
ZAC 1/50
ZAC 1/36L
Battery supply - 6V (4x1,5V) (AUM 033.xB)
  • Set-up water inlet - G 1/2"
  • Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC (does not apply to AUM 033.xB)
  • Set-up outlet d = 40 mm

    • A
      cold water supply , G 1/2" inner thread


    • B
      hot water supply, G 1/2" inner thread


    • C
      electricity supply, 12 V 50 Hz


  • D
    outlet, d = 40 mm
