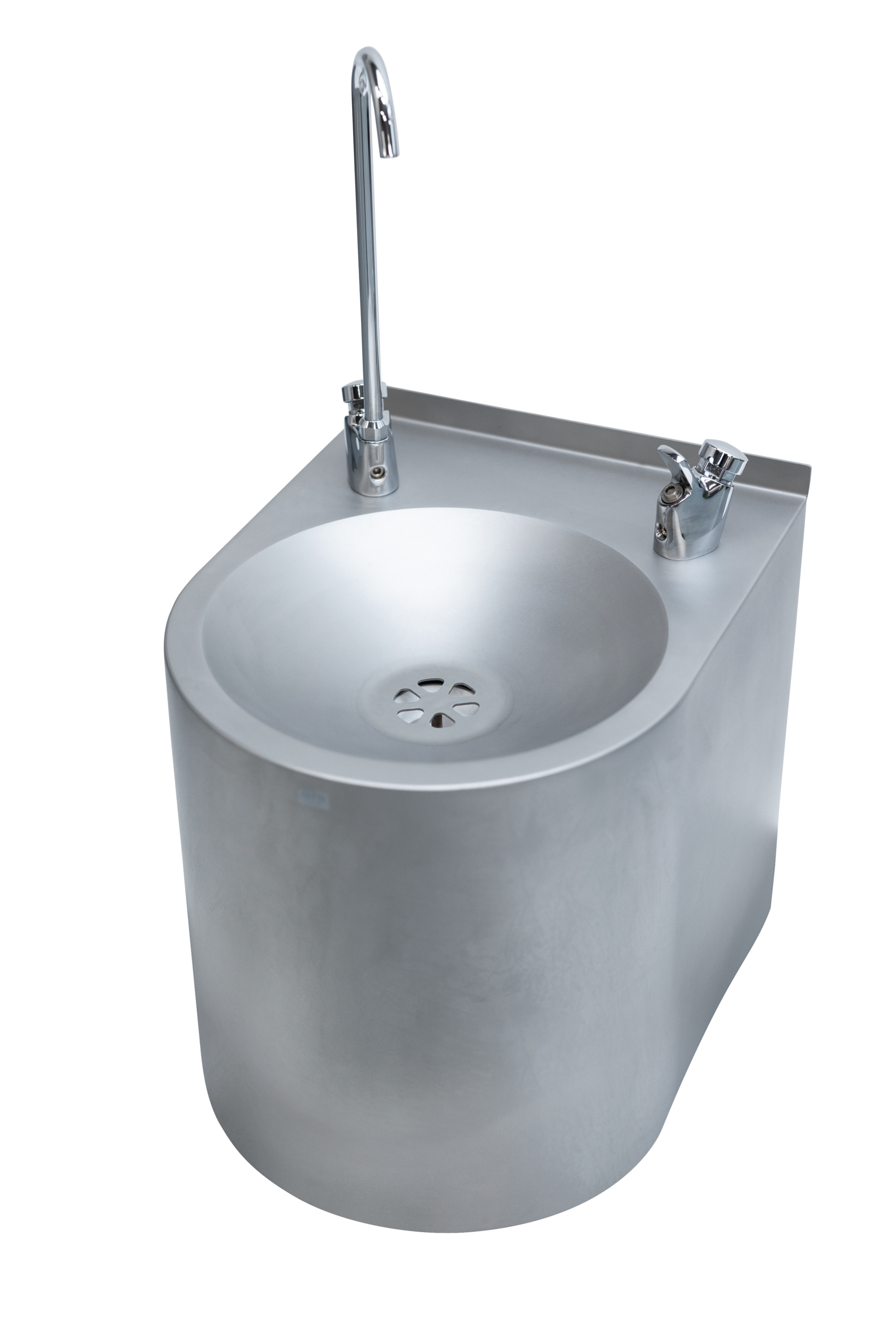

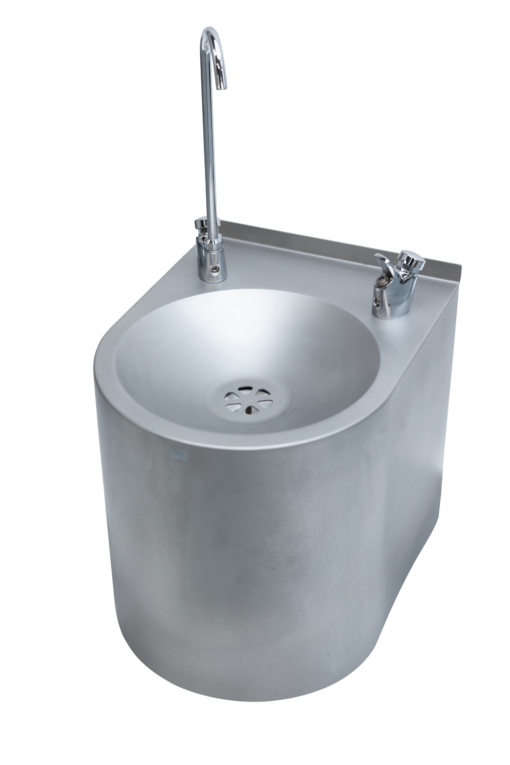

AFO 01.L Hanging stainless steel drinking fountain with bottle filling
AFO 01.L is a stainless steel hanging drinking fountain (drinking fountain) of modern design with a push valve and simple control. The drinking fountain is equipped with a second arm for filling bottles/glasses. Water flows for the duration of pressing the valve, and for a set period of time after releasing it, which rinses the nozzle.
The water supply is made with a flexible hose, the siphon is made with a flexible coupling. The flexible design of the water supply and waste allows for variable and problem-free connection of the drinking fountain and its easy disassembly.
The stainless steel drinking fountain AFO 01.L is particularly suitable for schools, healthcare and spa facilities, sports fields, playgrounds and other public spaces.
The AFO 01.L drinking fountain is made of AISI 304 stainless steel. The AFO 01.CLL
version is made of AISI 316 stainless steel. It is suitable for environments with higher chlorine concentrations.
For the treatment of stainless steel products, we recommend using Würth products – preservation (order no. 0893 121 K), cleaning (order no. 893 121 1).
Complete delivery
- drinking bowl body with integrated bowl … 1 pcs
- dowel d 10 … 4 pcs
- screw 6×50 … 4 pcs
| overall dimensions | 280 x 340 x 570 mm |
| inner bowl dimension | d = 245 mm |
| waste | d = 40 mm |
| water inlet | G 1/2" internal thread |
| water pressure | 0.2 – 0.6 MPa, recommended 0.3 MPa |
| weight | 5,45 kg |

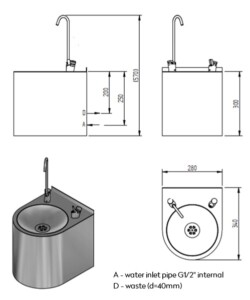

- Prepared water supply – G 1/2" according to the diagram
- A filter with a fine mesh (100 microns) must be used in the water supply to remove mechanical impurities from the water, which will significantly increase the reliability of the pressure valve. Damage to the mechanism due to the ingress of impurities is not subject to complaint.
- Prepared waste for Novodur flexible coupling d = 40 mm
Due to the flexible design of the drinking fountain supply and waste, the connection dimensions in the picture are only recommended. The supply and waste can be routed as needed, within the limits of the movable drinking fountain supplies and free space in the back.
