AUZ 06 stainless steel free-standing closet

AUZ 06 is a stainless toilet intended for free-standing on the floor, including grey seat made of hardened durable plastic (white or black seat are possible on order). It is suitable for all places where it is not possible to use wall-hung toilet (e.g. in case of low carrying capacity of the wall). In standard version the outlet is directed into the wall. Outlet directed into the floor is possible on customer´s wish.
A set with an AUZ 3 automatic flushing system or AUZ 5 automatic flushing system including flushing cistern can be completed.
AUZ 06 toilet can be also supplied as AUZ 06N – version with stainless steel flushing cistern which is a part of the toilet.
The casing of the toilet is made from the stainless steel of 1,5 mm thickness, the sitting part of 2 mm thickness.
AUZ 06 is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Package contents

  • Stainless steel closet
  • Plastic seat
  • Anchoring material

AUZ 3 – automatic flushing system

Water inlet d = 34 - 50 mm
Min. water flow 70 l/min
Outlet d = 90 mm
Weight 23 kg

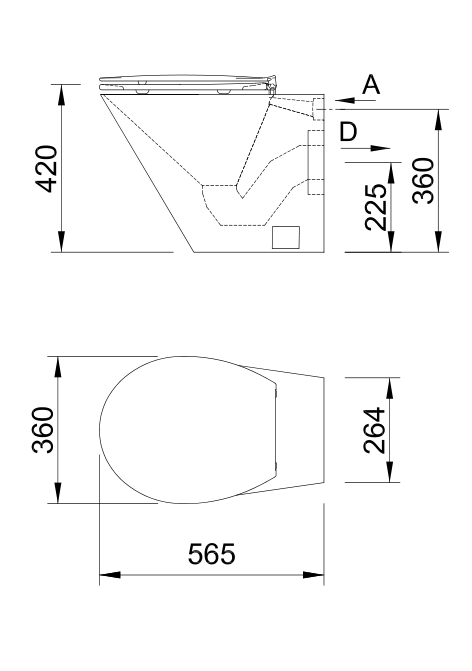

  • Set-up outlet into the floor according to the scheme, d = 110 mm including rubber sleeve for pipe d = 90 mm
  • Set-up water inlet
  • In combination with automatic flushing system AUZ 3:
  • Set-up alcove for installation casket
  • Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC

  • A
    water inlet
  • n

  • D
