BSAU 02 vandal-proof stainless steel washbasin

BSAU 02 is a vandal-proof washbasin intended mainly for installation into the the penitentiary facilities and everywhere where high security standards of hygienic equipment are needed.New vandal-proof washbasin BSAU 02 is concepted in similar way as stainless steel washbasin which is part of the vandal-proof combi set BSK 01.
Main advantages of BSAU 02:
-all the components are located under the stainless steel sheating (including siphon and water inlet)
– water outlet is made from thick stainless steel pipe which is not possible to bend or or break off by standard instruments
– water dosing is controlled by electronics. By pushing down the vandal-proof button , the electronics dose only the preset amount of water
– the vandal-proof push button only gives pulses for water dosing, therefore water stops running after the preset amount was released even in case that the button is blocked in pusched down position
– BSAU 02 was designed in the way that people in penitentiary facilities cannot willfuly hurt themselves
The vandal-proof washbasin is manufactured from the stainless steel sheet of 2 mm thicknes and is resistant to willful damage. The washbasin has sand blasted finish. The electronics is supplied with 12V, 50 Hz from the source of power supply ZAC 1/20.
The standard version of BSAU 02 is for connection to one preset water. Different dimensions or additional accessories are possible on order.

Package contents

  • washbasin with stainless steel sheathing, vandal-proof push button and electronics
  • fixing strip and anchoring material
  • outlet siphon with flexi connection d = 40 (or d = 50) adjustable by the owner for both dimensions
  • connection hoses with corner valve
Water inlet G 1/2“
Outlet d = 40 mm
Dimensions 600 x 435 x 460 mm
Inner dimensions of the sink diameter 370 mm
Electricity protection IP 55
Preset time of maximum water flow 1-20 s. adjustable by the owner
Water pressure 0,1 – 1,0 MPa
Power supply 12 V, 50 Hz
Power requirement 6 VА
Power supply unit ZAC 1/20 (max. 3 x BSAU 02)
  ZAC 1/50 (max. 8 x BSAU 02)

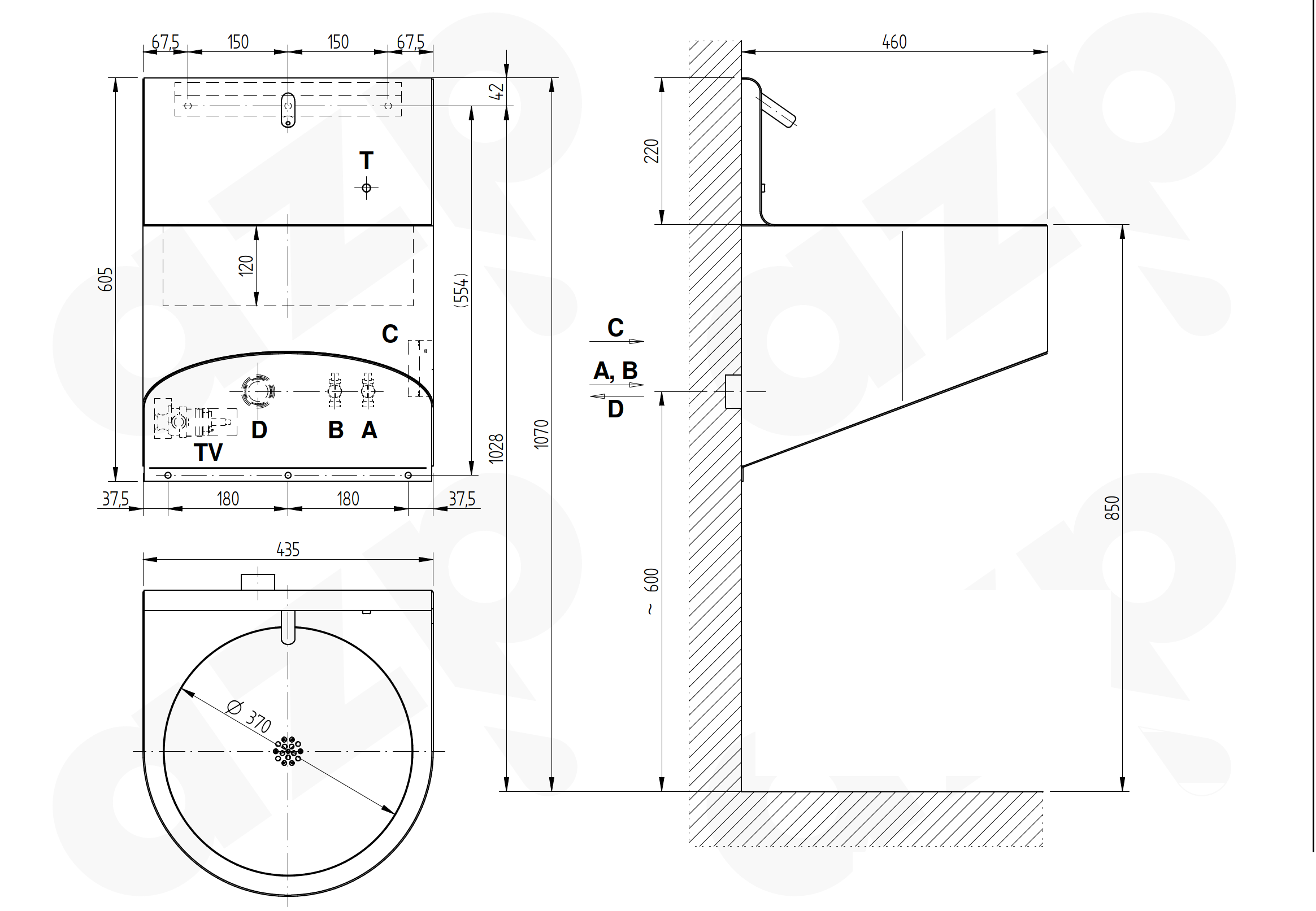

  • Set-up water inlet, pipe 1/2“ – as per picture
  • Set-up outlet d=40 mm or d=50 mm
  • Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC

  • A
    Water inlet G 1/2" (inner)
  • n

  • C
    Electricity supply
  • n

  • D


Data for projectants
