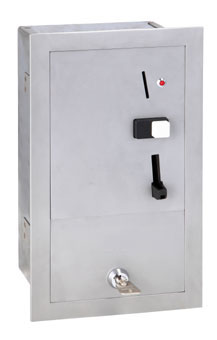

ZAP 1 token-operated automat for wash machine

ZAP 1 is a token-operated control intended for regulated usage of washing machine, dryers or other electrical appliances with power requirements referring to the switching abilities of an installed contractor. The power part is not part of the delivery and must be resolved separately in the frame of the electro-installation project.
After inserting tokens into the control, the contactor is switched on and the device is connected to the power supply for a certain period of time. The user can prolong time of the connection to the power supply by inserting more tokens. ZAP 1 adds numbers of inserted tokens, total time of connection to the power supply is derived from the multiple of the number of the tokens inserted and the time/1 token.
ZAP 1 can be used everywhere where a fee for a use of the electrical devices is required, e.g. camps.
The tokens used are of the type ZT 1 and are made of profiled stainless steel metal sheet.

Package contents

  • stainless steel casing
  • token scanner
  • electronics
  • box for tokens
  • casing of box with lock

RM 1 – power box for ZAP 1

Product code Product name Price Price (VAT)
ZAP 1 On demand On demand
Power supply 12V, 50Hz
Power requirement 4VA
Source of power supply ZAC 1/50
Electricity output from the control 12V, 3A AC or non-potential contact max. 24V, 3A
Type of token ZT 1
Actuation time 1min. ÷ 4hours 15min. per 1 min.
Weight 2,6kg
  • Set up alcove for coin-operated control installation
  • Set up four-core cable from the coin operated control to the power box
  • Connect the power wiring of the coin operated control and the power box according to the appliance in use
  • Carry out the modification of the switchboard or set up the power box by transswitches.
