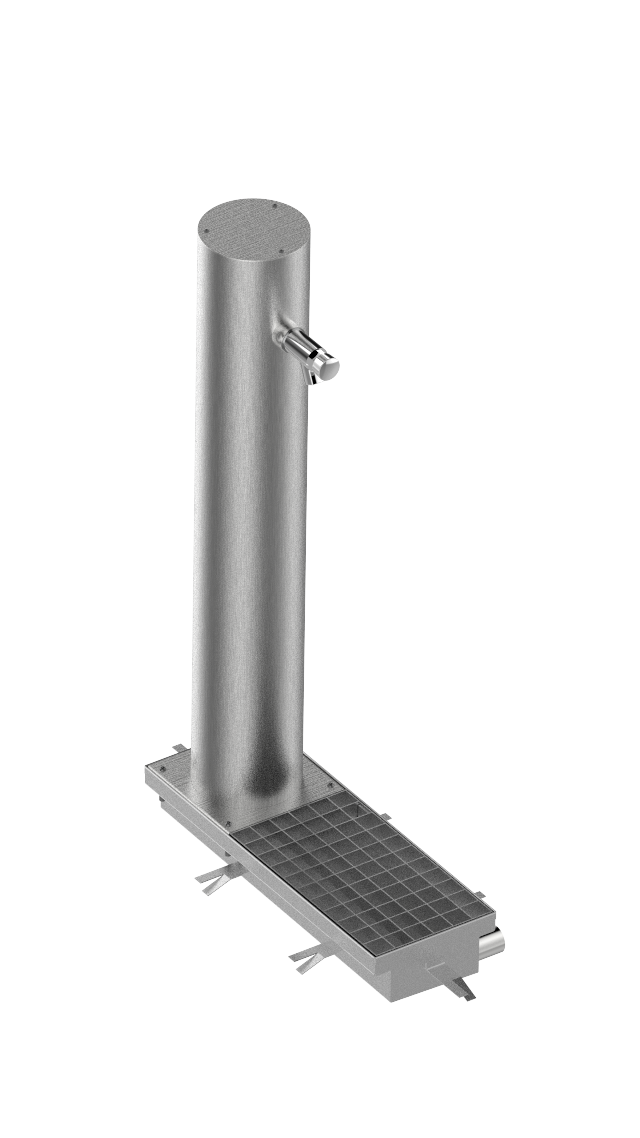

AFO 08 drinking fountain for indoor use with drip tray
AFO 08 is a stainless steel stand-mounted drinking fountain with a modern design and simple, reliable push-button operation. Drinking water flows as long as the button is pressed, ensuring easy use.
The water supply is provided by a standard G1/2″ connection with an external thread, which allows for quick and easy connection to the water supply. The drain is designed without an odor trap, which simplifies installation and maintenance.
The AFO 08 drinking fountain is designed for installation in the ground and is suitable for placement in open spaces. Thanks to its durable stainless steel construction, it is particularly suitable for parks, public spaces, recreational areas, sports facilities, and other places with high user traffic.
The stainless steel design ensures long life, easy cleaning, and high resistance to weathering.
For the treatment of stainless steel products, we recommend using Würth products – preservation (order no. 0893 121 K), cleaning (order no. 893 121 1).
You can find the complete range of drinking fountains in various designs at this link: Stainless steel drinking fountains and drinking fountains.
Complete delivery
- stainless steel casing
- push valve
- winter cover
- grate

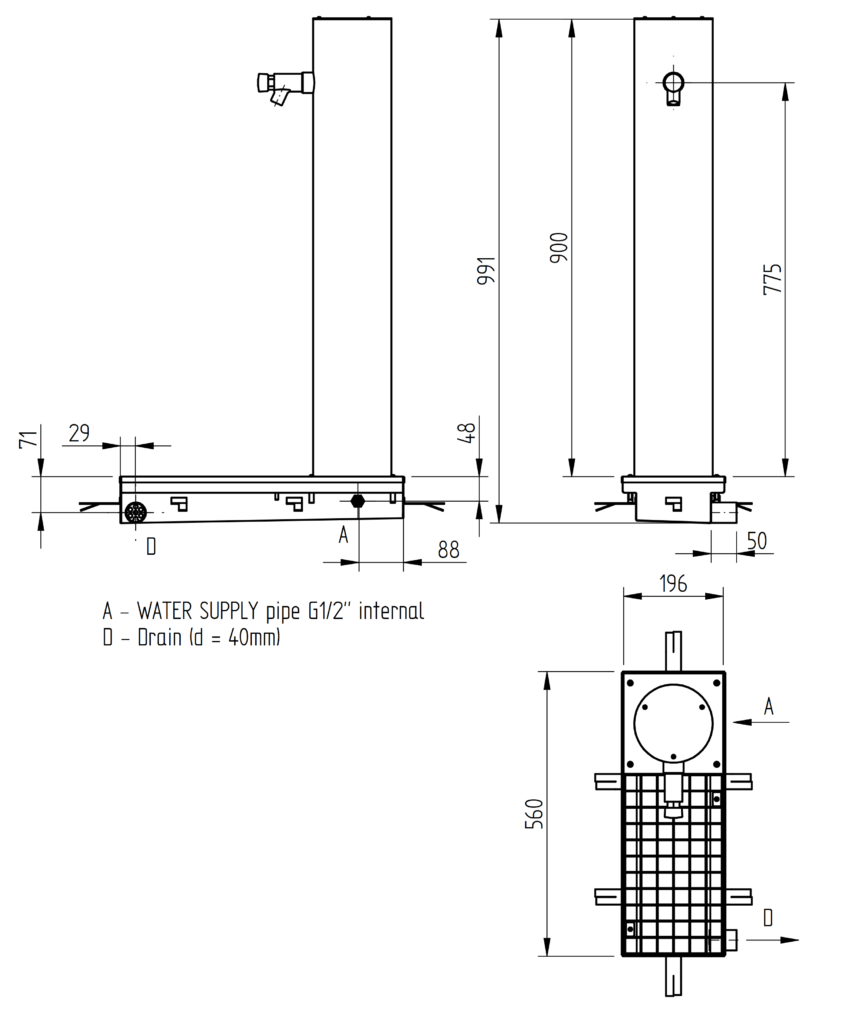

| water supply | G1/2“ internal thread |
| water pressure | 0,1 – 0,6 MPa |
| waste | pipe d = 40 mm |
| dimension | 560×196×991 mm |
| weight | 15 kg |
- Suitable opening in the floor for installing the drinking fountain.
- Waste pipe with odor trap prepared – not included with the drinking fountain.
- Water distribution system with ½" internal thread. The water supply must be fitted with a filter with a fine mesh (100 microns) to remove mechanical impurities from the water, which will significantly increase the reliability of the pressure valve.
- Prepared drain with a 40 mm diameter outlet below ground level.
