BSAZ 5

Wall module construction for WC with vandal-resistant st.steel cover

BSAZ 5 Wall module construction for WC with vandal-resistant st.steel cover

BSAZ 5 is a wall module for wall mounted toilets equipped with anti-vandal stainless steel cover – with resistant stainless safety buttons. The cover is screwed by security bolts therefore it cannot be dismounted without special tools. The system is suitable for spaces where toilet flushing from a cistern is required but where, on the other hand, there is a threat of damaging of usual plastic covers. The robust anti-vandal stainless cover contains stainless control buttons resistant to damage (unlike the usual plastic buttons).

The cover of BSAZ 5 is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Version types
BSAZ 5 - Wall module construction for WC with vandal-resistant st.steel cover
b
Basic technical information
Dimensions of wall module:(1000–1200) × 510 × (160–200) mm
Dimensions of st.steel cover:510 × 230 × 30 mm
Water inlet:G 1/2"
Outlet:DN 100
b
Requirements for setting up the construction
  1. Space for mounting the wall module
  2. Water inlet G 1/2"
  3. Waste pipe for outlet connection (DN 100)
b
Complete delivery
  • wall module with cistern
  • st.steel cover with vandal-proof buttons
b
Made to order
  • st.steel cover BSAZ 5 - separate st.steel cover with vandal-resistant buttons. Can be used only with the wall module from AZP Brno s.r.o.
b

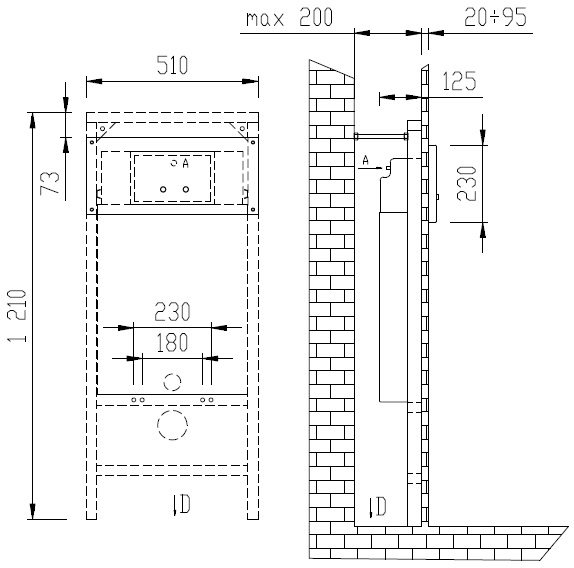

Figure

Figure - BSAZ 5 Wall module construction for WC with vandal-resistant st.steel cover
b
A -water inlet G 1/2"
D -outlet DN 100
b
b
Product title
BSAZ 5 -
Wall module construction for WC with vandal-resistant st.steel cover
