vandal-proof stainless steel toilet for free-standing

BSNZ 02 vandal-proof stainless steel toilet for free-standing

BSNZ 02 is a vandal-proof stainless steel toilet without automatics which is intended for free-standing. It is convenient in all places where it is not possible to use wall-hung toilet (e.g. in case of low carrying capacity of the wall). In standard version the outlet is directed into the floor. Outlet directed into the wall is possible on customer´s wish. The housing of the toilet is made from the stainless steel of 2 mm thickness, the sitting part of 4 mm thickness. For higher comfort of the user are the edges of the sitting part grinded down.

A set with an AUZ 3 automatic flushing system and KZ 1 cantilever, or with an AUZ 5 (in-wall toilet module) flushing system can be completed.

The closet is also produced in standard version (AUZ 02) which is made from the stainless steel sheet of 1,5 mm thickness, sitting part of 2 mm thickness and is quipped with plastic sitting board.

Basic technical information
Water inlet:d = 34 - 50 mm
Min. water flow:70 ltrs./min
Outlet:d = 90 mm
Weight:23 kg
b
Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove for installation casket (only for AUZ 3)
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC (only for AUZ 3)
  4. Set-up outlet d = 90 mm as per picture
  5. Set-up the cantilever or other system for hanging the closet
b
Complete delivery
  • stainless steel closet
  • anchoring material
b
Made to order
  • KZ 1 - cantilever of the wall-hang closet
  • AUZ 3 - automatic flushing system of the closet
  • AUZ 5 - automatic flushing system in the in-wall module
b
Figure

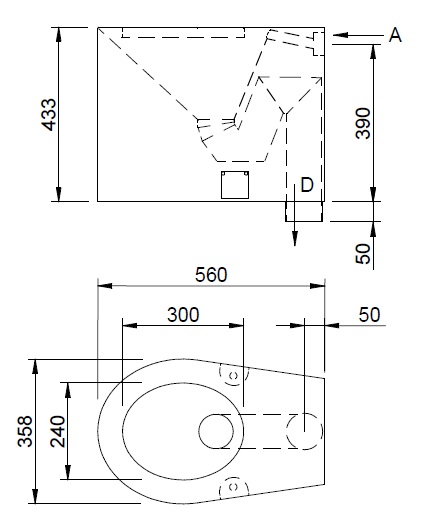

Figure - BSNZ 02 vandal-proof stainless steel toilet for free-standing
b
b
Product title
BSNZ 02 -
vandal-proof stainless steel toilet for free-standing
b
Download information about the product
dwgBSNZ 02 data for projectants - ( 35 kB )
