safety close-coupled set – toilette and wash basin – variant solutions

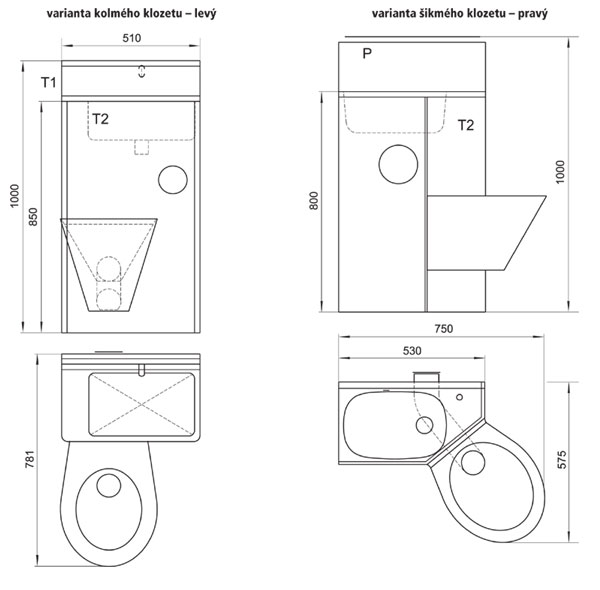

BSK 02 safety close-coupled set – toilette and wash basin – variant solutions

We are able to produce the BSK 02 safety close-coupled set based on BSK 01 in various layout solutions with or without drinking fountain – i.e. only the toilette and wash basin. Model variant – the toilet is positioned perpendicularly or canted. Mirror product can also be made – toilette can be on the right as well as on the left side of the set. Connection method and functions are same as for BSK 01. Other solutions are possible if required. As for the toilette position we differ between right and left design.

BSK 02 is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Příklad objednávky
1 pc. BSK 02 - safety stainless close-coupled BSK 02 set of wash basin + toilette. Left perpendicular model.Controlled by safety buttons with adjustable time of running, 12 V, 50 Hz.
1 pc. BSK 02 - safety stainless close-coupled BSK 02 set of wash basin + toilette. Right canted model.Controlled by safety buttons with adjustable time of running, 12 V, 50 Hz.
b
Figure

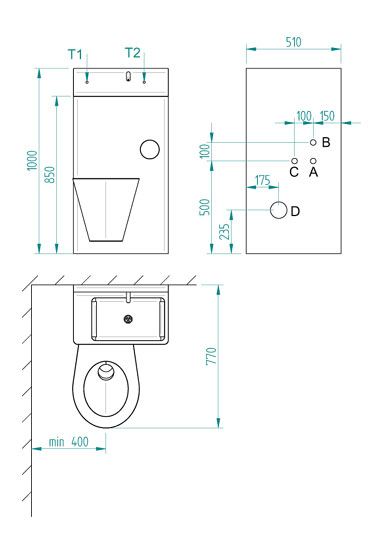

Figure - BSK 02 safety close-coupled set – toilette and wash basin – variant solutions
b

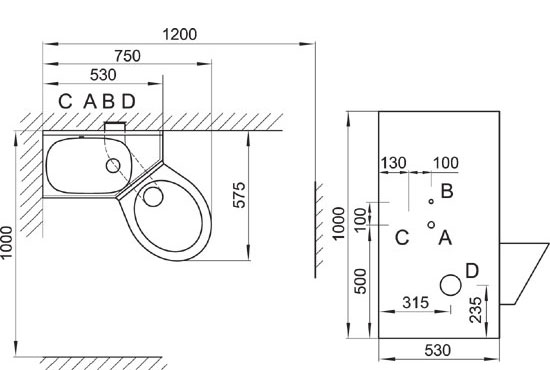

Figure - BSK 02 safety close-coupled set – toilette and wash basin – variant solutions
b
b
Product title
BSK 02 -
safety close-coupled set – toilette and wash basin – variant
