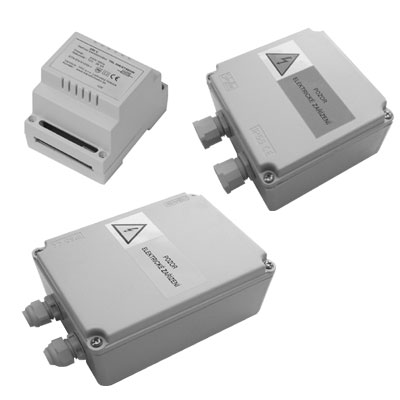

		ZAC 1/20, ZAC 1/50, ZAC 1/36L power supply

ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

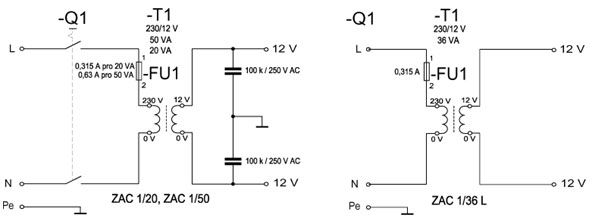

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA or 50 VA).

Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage:	230 V, 50 Hz
Output voltage:	12 V, 50 Hz
Power requirement:	20 VA (ZAC 1/20)
	50 VA (ZAC 1/50)
Electricity protection:	IP 55
Weight:	0,8 kg (ZAC 1/20)
	1,2 kg (ZAC 1/50)

Requirements for setting up the construction
Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5 Set-up niche for flush mounting – size as per installed source Distribution to each device is carried out by cable CYKY 2Ax1,5

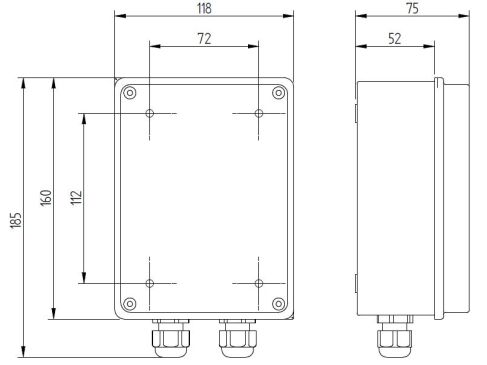

Figure
ZAC 1/20

ZAC 1/50

Product title

ZAC -

1/20 power supply for up to 3 devices - 230V, 50Hz

ZAC -

1/50 power supply for up to 8 devices - 230V, 50Hz
