SPS 01

shower column

SPS 01 shower column

SPS 01 is an integral stainless steel shower column intended for outdoor and indoor swimming pools, summer camps etc. The shower is operated by a press valve.

There are two ways of anchoring the column, grappling by concreting or anchoring by means of screws and joggles.

The basic version of the SPS 01 is equipped by one shower head and a press valve for water release. The column can be set up with a photocell head for contactless control and thermostatic valves to order.

SPS 01 is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Version types
SPS 01.1 - shower column with one shower arm
SPS 01.2 - shower column with two shower arms
SPS 01.3 - shower column with four shower arms
b
Basic technical information
Water inlet:G 1/2”
Water pressure:0,2 – 0,6 MPa
Water flow (one shower arm):approx. 7,5 l/min.
Height:2 m
Weight:50 kg
b
Requirements for setting up the construction
    when concreting
    1. Set up an opening in the floor minimum 400 x 400 x 150 mm
    2. Pipe in the middle of the opening in the floor finished off with 1/2” inner bolting
    when fixing by means of screws into joggles
    1. Corresponding consolidated soil (concrete, etc.)
    2. Pipe finished off with 1/2” bolting
    b
    When placing an order, the fixing must be specified!
    Complete delivery
    • integral stainless steel shower column
    • pressure valve
    • shower arm
    • anchoring construction
    • press valve 1, 2, 4
    • shower arm 1, 2, 4
    • connecting material
    b
    Figure

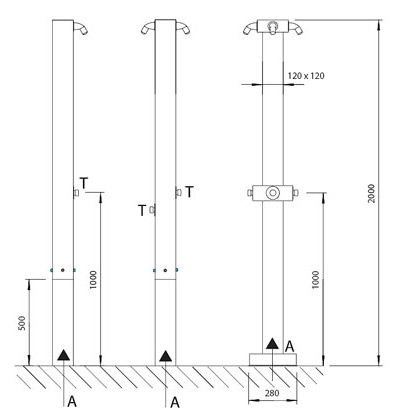

    Figure - SPS 01 shower column
    b
    b
    Product title
    SPS 01.1 -
    shower column with one shower arm
    SPS 01.2 -
    shower column with two shower arms
    SPS 01.3 -
    shower column with four shower arms
    b
    Download information about the product
    dwgSPS 01-1 data for projectants - ( 79 kB )
    dwgSPS 01-2 data for projectants - ( 92 kB )
    dwgSPS 01-3 data for projectants - ( 79 kB )
