		OV 02 stainless steel sewer inlet

OV 02 is a stainless steel sewer inlet that is intended for waste disposal of the caravans. Its construction enables vehicles to drive over the sewer.

It is possible to place the sewer on:
- existing sewer shaft (only in combination with the installation frame ROV 02)
- waste trap for summer service JOV 02.L
- waste trap for winter service JOV 02.Z

Waste traps are set up with a siphon that enables connection to the outlet d = 110 mm. Both waste traps are including the installation frame ROV 02.

Basic technical information
OV 02
Dimensions:	540 × 540 × 85 mm
Weight-carrying capacity:	3500 kg
ROV 02
Dimensions:	830 × 830 × 200 mm
JOV 02.L
Inner dimensions:	500 × 500 × 450 mm
Total dimensions:	630 × 630 × 450 mm
JOV 02.Z
Inner dimensions:	500 × 500 × 1250 mm
Total dimensions:	630 × 630 × 1250 mm
Outlet:	d = 110 mm

Requirements for setting up the construction
Set up suitable hole in the ground: JOV 02.L – 630 × 630 × 200 mm (top of the hole) and 530 × 530 × 250 mm beneath JOV 02.Z – 630 x 630 x 200 mm (top of the hole) and 530 × 530 ×1050 mm beneath ROV 02 – 830 × 830 × 200 mm Set up outlet d = 110 mm Set up sump for ROV 02

Complete delivery

complete delivery must include

OV 02 + ROV 02
or OV 02 + JOV 02.L
or OV 02 + JOV 02.Z

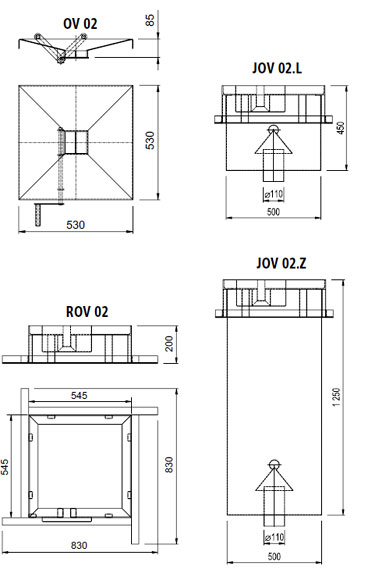

Figure

Product title

OV 02 -

stainless steel sewer inlet

JOV 02.L -

waste trap for OV 02 - summer service

JOV 02.Z -

waste trap for OV 02 - winter service
