SA 2

surface shower unit

SA 2 surface shower unit

SA 2 is a surface shower unit intended for replacement of ordinary taps during reconstructions of social facilities. The SA 2 shower unit is wall-mounted without the necessity of additional construction work. It is designed to be assembled onto existing water inlets. The unit is equipped with an electromagnetic valve which opens the water inlet. The user operates the shower by means of a press button.

SA 2 shower units are intended for usage in connection with AZP Brno coin-operated controls (version types MAS 1, MAS 2).

SA 2 is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Version types
SA 2.1 - subsurface shower unit for one water supply
SA 2.TV - subsurface shower unit for two water supplies with thermostatic valve
b
Basic technical information
Water inlet:G 1/2”
Water pressure:0,1 – 1,0 MPa
Power supply:12 V, 50 Hz
Power requirement:5 VA
Source of power supply:MAS 1 or MAS 2
Weight:12 kg
b
Requirements for setting up the construction
  1. Set up water inlet
  2. Set up cable for power supply to be connected with MAS
  3. Assembly of the SA 2 subsurface unit does not need any particular construction setting. Construction of the armature enables connection to existing hot and cold water inlet with spacing from 90 to 160 mm, at the height of 950 – 1 150 mm.
b
Complete delivery
  • stainless steel casing
  • control button
  • shower arm SP 4
  • electromagnetic valve
  • thermostatic valve (SA 2.TV)
  • corner valve (SA 2.TV)
  • connecting hoses
  • bearing beam
  • small assembly materials
b
Figure

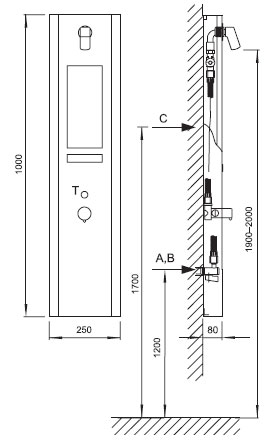

Figure - SA 2 surface shower unit
b
A -cold water (SA 2.TV), premixed water (SA 2.1), pipe G 1/2"
B -hot water SA 2.TV, pipe G 1/2"
C -electricity supply from automat MAS
T -piezo button
b
b
Product title
SA 2.1 -
wall mounted shower panel for pre-set water temperature
SA 2.TV -
wall mounted shower panel for cold and hot water with thermostatic valve
