SA 1

subsurface shower unit

SA 1 subsurface shower unit

SA 1 is a subsurface shower unit intended for new buildings or for reconstructions of social facilities. The SA shower unit is intended for usage only in connection with AZP Brno coin-operated controls (version types MAS 1, MAS 2). The shower is equipped with an electromagnetic valve which opens the water inlet. The user operates the shower by means of a press button.

We recommend use of SP 1, SP 2, SP 3, SP 4 or SP 5 shower heads in combination with SA 1 shower unit.

SA 1 is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Version types
SA 1.1 - subsurface shower armature for one water supply
SA 1.TV - subsurface shower armature for two water supplies with thermostatic valve
b
Basic technical information
Water inlet:G 1/2”
Outlet to shower arm:G 1/2”
Water pressure:1 - 10 bar (0,1 – 1,0 MPa)
Power supply:12 V, 50 Hz
Power requirement:5 VA
Source of power supply:MAS 1 or MAS 2
Weight:SA 1.1 – 1,1 kg
 SA 1.TV – 3,5 kg
b
Requirements for setting up the construction
  1. Set up alcove for installation of casing of the valve – size is determined according to used type of SA 1 armature
    SA 1.1: 150 x 150 x 70 mm
    SA 1.TV: 290 x 170 x 70 mm
  2. Set up water inlet
  3. Set up cable for power supply to be connected with MAS
  4. Other setting for total configuration – see product datasheet of coin-operated controls MAS 1 or MAS 2
b
Complete delivery
  • installation box
  • inlet and outlet bolting
  • stainless steel casing
  • control button
  • electromagnetic valve (SA 1.TV)
  • spherical valve (SA 1.1)
  • covering metal assembly plate (SA 1.1)
  • mounting spacer tray
  • inner connecting hoses (SA 1.TV)
  • small assembly materials
b
Made to order
  • SP 1 - shower head 9l/min
  • SP 2 - vandal-proof shower head 7l/min
  • SP 3 - vandal-proof shower head 7l/min
  • SP 4 - vandal-proof shower head 7l/min
  • SP 5 - vandal-proof shower head 12l/min
b
Figure

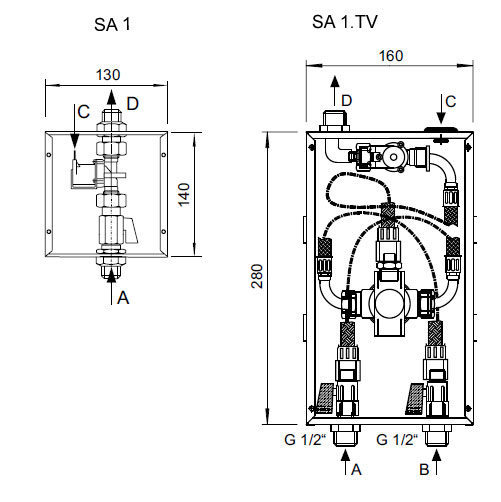

Figure - SA 1 subsurface shower unit
b
A -cold water (SA 1.TV)
mixed water (SA 1.1)
pipe G 1/2"
B -hot water (SA 1.TV)
pipe G 1/2"
C -inlet from MAS
D -outlet to the arm pipe G 1/2"
b
b
Product title
SA 1.1 -
concealed shower for pre-set water temperature
SA 1.TV -
concealed shower for cold and hot water, with thermostatic valve
