coin automat for 2 - 8 showers

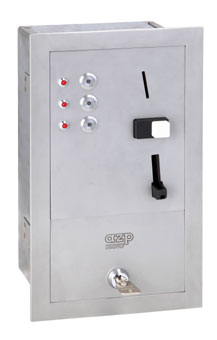

MAS 2 coin automat for 2 - 8 showers

MAS 2.2 – MAS 2.8 are coin-operated controls intended for operating 2 to 8 end users (showers, washbasins, electric dryers, through-flow water heaters etc.).

The total time and charge for the use of the appliance can be set on the control. When setting up the control for the use with showers or washbasins that are equipped with the water meter it is also possible to set the amount of water expendable at one use. The user is given notice by interrupted water flow that the showering time is getting to its end.

The coin-operated automat should be supplemented with shower armatures SA 1.1 (SA 1.TV), SA 2.1 (SA 2.TV) or SA 11.1 produced by AZP Brno.

The power unit is not part of the delivery and must be resolved separately in the frame of the electro-installation project.

On order the coin-operated shower control can be equipped with a coin counter PM 1 or frame with lock cover.

The products are manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Version types
MAS 2.2 - MAS 2.8 - (with automatic allocation) - coin-operated controls intended for operating 2 to 8 showers (washbasins). The user is automatically given the next free end-user point, but it is not possible to prolong the time of usage.
MAS 2R.2 - MAS 2R.8 - (with option of end-user point) – a coin-operated control intended for operating 2 to 8 showers (washbasins). The user chooses an end-user point that he wants to use by pressing a button on the control. It is possible to prolong the time of usage by inserting other coins at any time during the operation.
MAS 2A.2 – MAS 2A.8 - (with option: men - women) – this coin-operated control is intended for operating two groups of devices (max. 2 x 4). The user chooses the required group (e.g. men or women) by pressing a button on the control. The user is automatically provided with the next free shower in the chosen group. Paying extra to prolong the usage is not possible.
b
Basic technical information
Power supply:12V, 50Hz
Power requirement:8VA
Source of power supply:ZAC MAS
Types of coins:1, 2, 5, 10, 20 CZK; 0,1; 0,2; 0,5; 1; 2 EUR and tokens ZT 2; other coins made to order
Time of showering:1 sec. - 5 hrs.
Time of stay in a cabin:1 sec. - 5 hrs.
Weight:3,6kg
b
Requirements for setting up the construction
  1. Set up cable for power supply - 230 V, 50 Hz for source of power supply ZAC MAS
  2. Set up alcoves for the control installation with combination box including installation pipe P29 (length max. 1,5m) to its connection
  3. Set up alcove for SA 1 (SA 11) armature usage
  4. Water and electricity distribution net is carried out as per schema
b
Complete delivery
  • stainless steel casket
  • coin scanning device
  • electronics
  • box for coins
  • casket casing with a lock
  • combination box
b
Made to order
b
Figure

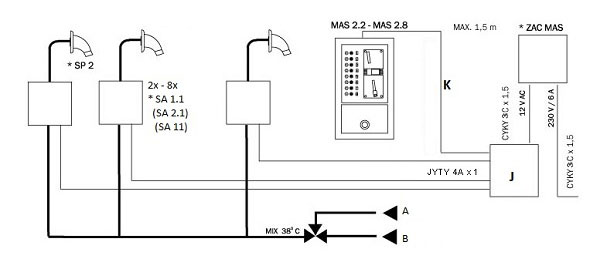

Example of connection to one water supply
Figure - MAS 2 coin automat for 2 - 8 showers
b
A -cold waterK -installation pipe P29
B -hot water* -not part of delivery
J -connection box
b

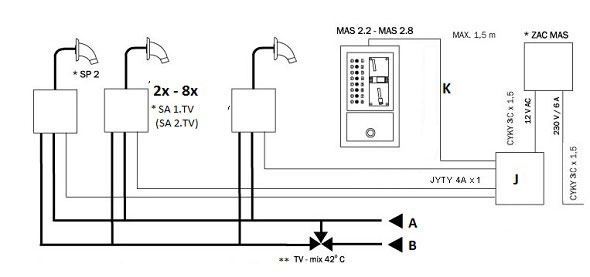

Example of connection to hot and cold water supply
Figure - MAS 2 coin automat for 2 - 8 showers
b
A -cold waterK -installation pipe P29
B -hot water* -not part of delivery
J -connection box** -Recommended temperature
b

Figure - MAS 2 coin automat for 2 - 8 showers
b
b
Product title
MAS 2.2-8 -
coin automat for 2 - 8 showers - 12V, 50 Hz
