MAS 1

coin-operated control

MAS 1 coin-operated control

MAS 1 is a coin-operated control intended for one shower. The showering time is pre-set on the control by the owner. The user, after inserting a selected amount of the coins, has a certain showering time at his disposal which he can manage by using a STOP/START button. The user is given notice by the interrupted water flow that the showering time is getting to its end. It is possible to prolong the showering time by inserting an additional amount of coins.

Version types
MAS 1 - coin-operated control intended for one water supply
MAS 1.V - coin-operated control for sanitary cabin. Automat measures overall consumption of water in the cabin (e.g. consumption of water in shower and in washbasin). The armature with water-meter must be used with this system (SA 1.V or SA 11.V).
b
Basic technical information
Power supply:12V, 50Hz
Power requirement:5VA (20VA when scanning coins)
Source of power supply:ZAC 1/50
Types of coins:1, 2, 5, 10, 20 CZK; 0,1; 0,2; 0,5; 1; 2 EUR and tokens ZT 2; other coins made to order
Time of taking a shower bath:10s - 42,5minutes, after 10s
Time of stay in a cabin:2x time of showering time
Weight:2,6kg
b
Requirements for setting up the construction
  1. Set up cable for power supply - 12 V, 50 Hz from source of power supply ZAC
  2. Set up alcove for the control installation
  3. Set up alcove for SA 1 (SA 11) armature
  4. Carry out water and electricity distribution net as per schema
b
Complete delivery
  • stainless steel casket
  • coin scanning device
  • electronics
  • box for coins
  • casket casing with a lock
b
Figure

Figure - MAS 1 coin-operated control
b
b
Figure

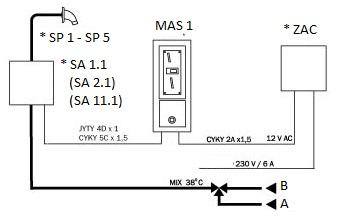

Example of connection to one water supply
Figure - MAS 1 coin-operated control
b
A -cold water
B -hot water
* -not part of delivery
b
b
Figure

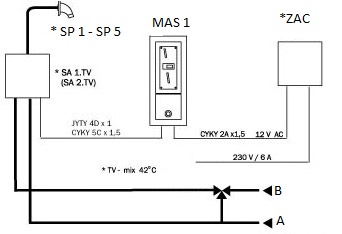

Example of connection to hot and cold water supply
Figure - MAS 1 coin-operated control
b
A -cold water
B -hot water
* -not part of delivery
b
b
Made to order
b
Product title
MAS 1 -
coin automat for 1 shower - 12V, 50Hz
