AFO 01.S

stainless steel drinking fountain with pressure valve designed to stand and to be attached to wall

AFO 01.S stainless steel drinking fountain with pressure valve designed to stand and to be attached to wall

AFO 01.S is a drinking fountain of stainless steel with pressure valve designed to stand and to be attached to wall. Water runs for the time for which the valve is pressed plus the pre-set period after it is released; thus the jet can be rinsed.

Water supply is provided by a flexible hose, trap comprises an elastic flexible couple. Flexible design of water supply and outflow allows variable and easy connection of the drinking fountain as well as its dismounting.

The drinking fountain is also manufactured in the following modifications:

AFO 01.SL – drinking fountain with spout for filling bottles

AFO 01.SC – drinking fountain with cooling

AFO 01.SCL - drinking fountain with cooling and spout for filling bottles

Automatic drinking fountain (with a sensor) can be supplied per order.

AFO 01.S is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Version types
AFO 01.S - stainless steel drinking fountain designed to stand and to be attached to wall
b
Basic technical information
dimensions:330 x 900 x 365 mm
outlet:d = 40 mm
water inlet:G 1/2"
water pressure:0,2 – 0,6 MPa, recommended 0,3 MPa
weight:12 kg
b
Requirements for setting up the construction
  1. Set up water outlet d = 40 mm
  2. Set up water inlet G 1/2"
b
Complete delivery
  • Stainless housing with cone
  • Pressure valve with jet
  • Flexible hose outflow
  • Fixing and connecting material
b

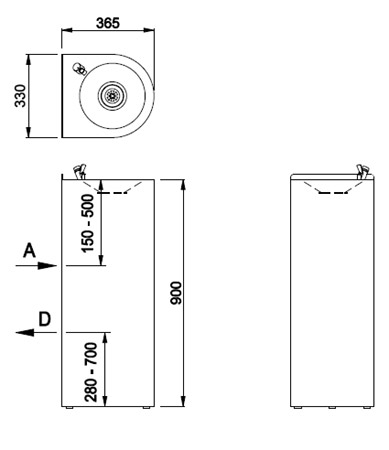

Figure

Figure - AFO 01.S stainless steel drinking fountain with pressure valve designed to stand and to be attached to wall
b
A -water inlet
D -water outlet
b
b
Product title
AFO 01.S -
stainless steel drinking fountain designed to stand and to be attached to wall
