AFO 02 - II

stainless steel free-standing drinking fountain (indoor/outdoor)

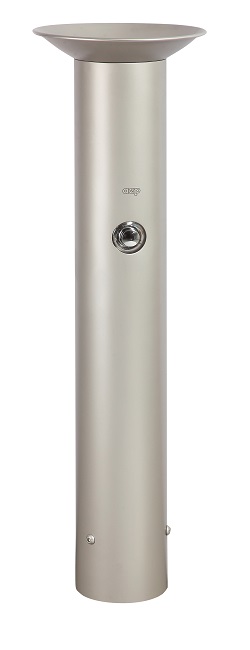

AFO 02 - II stainless steel free-standing drinking fountain (indoor/outdoor)

AFO 02-II is a stainless steel drinking fountain of modern design with a manual press valve that allows its easy use. The water flows only when the valve is pressed and then there is a certain adjusted time to rinse out the nozzle.

The drinking fountain is to be placed in an open space. It is made up of an anchoring part intended for embedding in concrete and the column itself with a press valve and nozzle. These parts are connected by means of 3 screws and the upper part can be, therefore, easily dismounted in case of necessity (e.g. during winter).

The water inlet is fitted with a flexible hose, the siphon is made from a stretchy, flexible connector. The flexible finish of the water inlet and outlet allows the variable and problem-free connection of the fountain.

AFO 02-II stainless steel fountain is suitable mainly for schools, medical facilities and spa resorts, and is utilizable outdoors.

Drinking fountain AFO 02-II is manufactured from the stainless steel AISI 304. AFO 02.CL-II is made of the stainless steel AISI 316 and is suitable for places with higher concentration of chlorine.

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Complete offer of drinking fountains in various designs can be found under this link: Stainless-steel drinking fountains.

AFO 02 - II stainless steel free-standing drinking fountain (indoor/outdoor)

Detail of the bowl

Version types
AFO 02-II - st. steel free-standing drinking fountain, AISI 304
AFO 02.CL-II - st. steel free-standing drinking fountain, AISI 316
b
Basic technical information
Water inlet:G 1/2"
Water pressure:2 – 6 Bar, recommended 3 Bar
Outlet:d = 40 mm
Inner dimensions of sink:d = 290 mm
Weight:20 kg
b
Requirements for setting up the construction
  1. Set-up water inlet - pipe G 1/2“
  2. Set-up drainage d = 40 mm
  3. Prepared alcove for embedding (concreting) in the base construction
b
Complete delivery
  • stainless steel column and cone with nozzle
  • press valve
  • anchoring construction
  • flexible hose siphon
  • connecting hoses
  • anchoring material
b
Figure

Figure - AFO 02 - II stainless steel free-standing drinking fountain (indoor/outdoor)
b
*K -anchoring construction
A -water inlet, pipe G 1/2"
D -outlet d=40 mm
b
b
Product title
AFO O2 -
stainless steel free-standing drinking fountain
