ASO 04

dryer with komaxit surface finish for 12 pairs of shoes

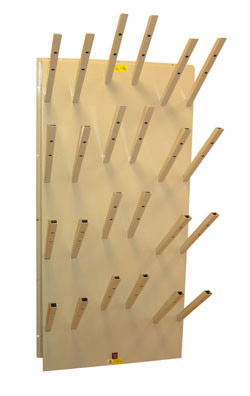

ASO 04 dryer with komaxit surface finish for 12 pairs of shoes

ASO 04 is a new dryer with komaxit surface finish designed to dry up to 12 pairs of shoes. The dryer shall be fixed to wall. Drying is ensured by forced heated-air flow which – when compared to other systems – prevents bacterial multiplication in humid environment. The drying temperature is not more than 20 degrees centigrade higher than the room temperature.

If required the dryer can be equipped by ozone generator to kill disease-producing bacteria. The product must then be located in ventilated rooms to avoid excess ozone concentration. Using a partition two dryers can be fixed together back-to-back and placed to open space on a stand screwed to the floor. The stand and partition are not included in the delivery.

Basic technical information
Power supply:230 V, 50 Hz
Power input:620 VA
Air temperature:max. 20°C above surrounding temperature
b
Complete delivery
  • Dryer with arms
  • Fixing material
b
Figure

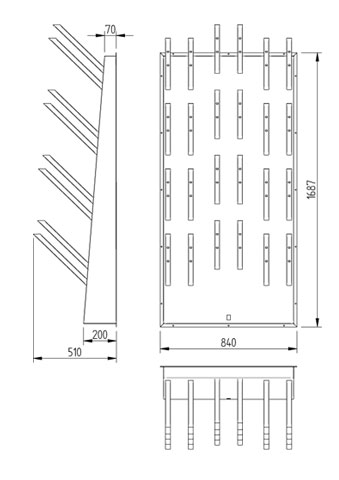

Figure - ASO 04 dryer with komaxit surface finish for 12 pairs of shoes
b
b
Product title
ASO 04 -
dryer with komaxit surface finish for 12 pairs of shoes
b
Download information about the product
dwgASO 04 data for projectants - ( 38 kB )
