RMZ 01

automatic washing system for aprons

RMZ 01 automatic washing system for aprons

The RMZ 01 is a stainless steel sensor-controlled washing machine for aprons. A built-in photocell reacts to the presence of the apron in the scanning zone. The electromagnetic valve is automatically switched on, the brushes start to rotate, the water inlet is opened and a dosage of disinfectant liquid is carried out. The apron is dropped by its outspread edge between the rotary brushes, the straps has to be held constantly. After the apron went through the brushes it is pulled out slowly by a backward movement. In case the apron is pulled in to the washing system it can be pulled out from the face opening. The functional space of the rotary brushes is freely accessible after lifting off the upper covering. There is a CENTRAL/STOP button for emergency switching off.

The washing system is intended for free installation onto the floor. The imperfections in the floor are balanced out by four adjustable hobs. The construction of the system allows the outlet to be placed above floor level.

The KMZ 01 washing system is intended for operations where quality mechanical dirt removal from working aprons is required.

The canister with disinfecting solution is not part of the delivery.

Basic technical information
Water inlet:G 1/2“
Water pressure:0,1 – 1,0 MPa
Outlet:G 6/4”
Electricity protection:IP 55
Power supply:230 V, 50 Hz
Power requirement:370 W
Width of apron:max. 1,5 m
Water temperature:max. 42°C
Weight:120 kg
b
Requirements for setting up the construction
  1. Setup water inlet as per picture
  2. Setup outlet G 6/4” via effluvial cover
  3. Setup cable for power supply 230 V, 50
b
Complete delivery
  • body of washing system
  • electronics with photocell
  • two rotary brushes
  • jerican holder
  • priming hoses
  • adjustable hobs
  • central stop button
b

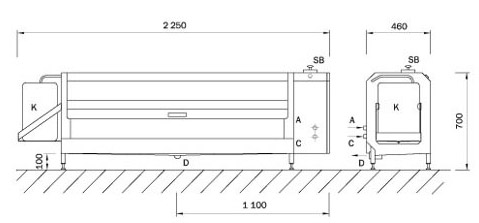

Figure

Figure - RMZ 01 automatic washing system for aprons
b
A -water inlet inner pipe G 1/2" E -zone of scaning
C -electricity supplyK -canistr
D -outletSB -central stop
b
b
Product title
RMZ 01 -
automatic washing system for aprons with rotary brushes - 230V, 50Hz
b
Download information about the product
dwgRMZ 01 data for projectants - ( 94 kB )
