KMZ 01

washing system for aprons

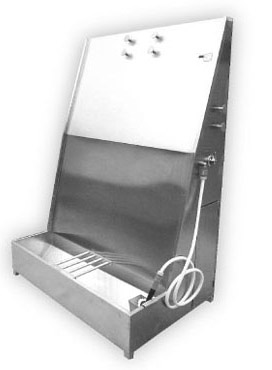

KMZ 01 washing system for aprons

The KMZ 01 is a steel washing system intended for free-standing onto the floor. It is equipped with a hand brush connected by a hose to the water inlet and controlled by a sensor with START/STOP system. The electromagnetic valve is automatically switched on after the brief shading of the sensor and opens the water inlet including the dosage of disinfectant liquid. If the system is not switched off by repeat shading of the sensor water stops flowing after the set time of 15 sec. (can be adjusted from 5 to 100 sec.).

An apron is spread in the bottom part of the washing system and the straps are fixed on hangers in the upper part. After the apron is washed from one side, it can be turned around and the other side can be washed. It is possible to put a shoes on the grid and wash them by using the brush.

Imperfections in the floor are balanced out by four adjustable hobs. The construction of the system allows the outlet to be placed above floor level.

The KMZ 01 washing system is intended for operations where quality mechanical dirt removal from working aprons is required.

The canister with disinfecting solution is not part of the delivery.

Basic technical information
Radius of sensor:0 - 0,1 m
Water inlet:G 1/2“
Water pressure:0,1 – 1,0 MPa
Outlet:d = 50 mm
Concentration of disinfectant liquid:adjustable
Water flow capacity via the brush:max. 15 l/min
Electricity protection:IP 55
Power supply:12 V, 50 Hz
Power requirement:resting state 1 VA
 when open 10 VA
Source of power supply:ZAC 1/20 (max. 2 x KMZ 01)
 ZAC 1/50 (max. 5 x KMZ 01)
Water temperature:max. 42°C
Weight:72 kg
b
Requirements for setting up the construction
  1. Setup water inlet as per picture
  2. Setup outlet d = 50 mm via effluvial cover
  3. Setup cable for power supply – 12 V, 50 Hz from source of power supply ZAC
b
Complete delivery
  • body of washing system
  • electronics with photocell
  • hand brush with hose
  • stepping grid
b
Figure

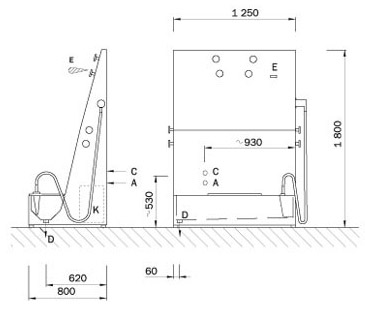

Figure - KMZ 01 washing system for aprons
b
A -cold water inner pipe G1/2"E -zone of scaning
C -electricity supplyK -canistr
D -outlet
b
b
Product title
KMZ 01 -
washing system for aprons with hand brush and START/STOP sensor - 12V, 50Hz
b
Download information about the product
dwgKMZ 01 data for projectants - ( 97 kB )
