stainless steel turnstiles

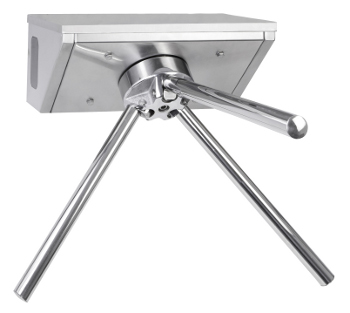

TRM stainless steel turnstiles

TRM 01, TRM 02 are stainless steel turnstiles intended for the through pass regulation of individuals. The turnstiles are one-way in right or left versions. TRM 01 is intended for connection to hand disinfectant ADR 01.3 and after pressing a button enables also a back stroke. The back stroke can be conditioned by using another device, e.g. a washing system for shoes. This variant needs to be specified when ordering.

The TRM 02 works in a separate mode without the possibility of back stroke and does not require an electricity supply. The turning direction needs to be specified when ordering.

The devices are intended to be wall mounted or in combination with a STR 01 column for installation on the floor.

Version types
TRM 01 - wall mounted motor turnstile
TRM 02 - wall mounted mechanical turnstile
b
Basic technical information
TRM 01
Electricity protection:IP 55
Power supply:12 V, 50 Hz
Power requirement:24 VA
Source of power supply:ZAC 1/50 (max. 2 x TRM 01)
Dimensions (l x w x h):870 x 830 x 810 mm
Device capacity:20 individuals per minute
Weight:26 kg
TRM 02
Dimensions (l x w x h):870 x 830 x 810 mm
Device capacity:20 individuals per minute
Weight:29 kg
STR 01
Dimensions (l x w x h):350 x 350 x 1 050 mm
Weight:8 kg
b
Requirements for setting up the construction
  1. Setup cable for power supply – 12 V, 50 Hz from source of power supply ZAC (only TRM 01)
b
Complete delivery
  • device body
  • turning arms
  • driving unit (only TRM 01)
  • blocking unit (only TRM 02)
b
Made to order
  • ADR 01.3 – automatic hand disinfectant
  • STR 01 – column for TRM
b

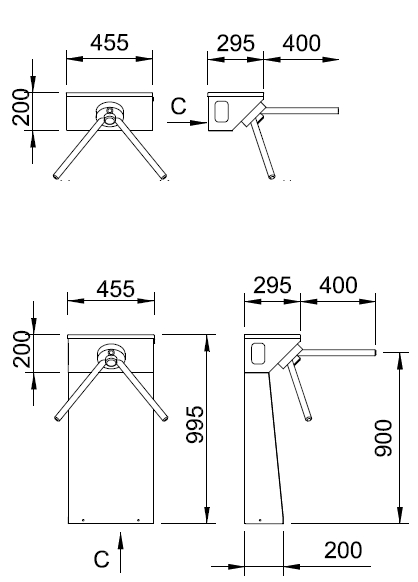

Figure

Figure - TRM stainless steel turnstiles
b
C -electricity supply
T -reverse run button
b
b
Product title
TRM 01 -
motor turnstile, wall mounted - 12 V, 50 Hz
TRM 02 -
mechanical turnstile, wall mounted
STR 01 -
stand for TRM turnstile
b
Download information about the product
dwgTRM 01 data for projectants - ( 151 kB )
dwgTRM 02 data for projectants - ( 151 kB )
