BDZ 01

disinfection ford for concealed mounting

BDZ 01 disinfection ford for concealed mounting

The BDZ 01 is disinfecting ford intended for concealed mounting on the floor. Disinfection of working shoes is ensured when walking through the determined area. The height level of the disinfectant liquid is regulated by throwing up the socket of the spillway. The ford can be emptied by taking out the spillway. Removable grids make maintenance and cleaning easy. The upper edge of the ford is set at the level of the floor.

Disinfection liquid is not part of the delivery.

Basic technical information
Outlet:d = 75 mm
Amount of disinfectant liquid:approx. 140 l
Weight:83 kg
b
Requirements for setting up the construction
  1. A gap in the floor 2300 x 1050 – depth 250 mm
  2. Setup outlet d = 63 mm via effluvial cover
b
Complete delivery
  • ford body
  • stepping grids 3 pcs
  • spillway socket
b

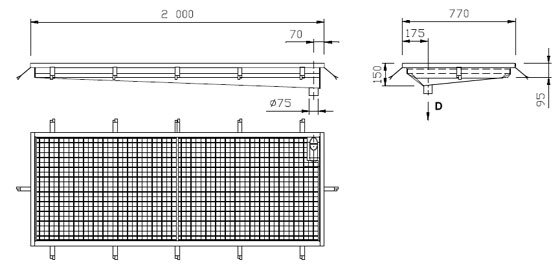

Figure

Figure - BDZ 01 disinfection ford for concealed mounting
b
D -outlet d = 63 mm
b
b
Product title
BDZ 01 -
disinfection ford for concealed mounting - lenght 2000 mm
b
Download information about the product
dwgBDZ 01 data for projectants - ( 96 kB )
