BDS 02

disinfection ford

BDS 02 disinfection ford

The BDS 02 is stainless steel ford with railing ensuring disinfection of working shoes when walking through the determined area and is intended for floor installation. Imperfections in the floor are balanced out by four adjustable hobs. The construction of the system allows the outlet to be placed above floor level. The height level of the disinfectant liquid is regulated by throwing up the socket of the spillway. The ford can be emptied by taking out the spillway. Removable grids make maintenance and cleaning easy.

As per customer’s requirements the ford can be equipped with a turnstile, hand disinfection and other accessories.

Disinfectant liquid is not part of the delivery.

Basic technical information
Outlet:d = 75 mm
Amount of disinfectant liquid:approx. 120 l
Weight:120 kg
b
Requirements for setting up the construction
  1. Setup outlet d = 63 mm via effluvial cover
b
Complete delivery
  • ford body with handrail
  • stepping grids 5 ps
  • spillway socket
b
Figure

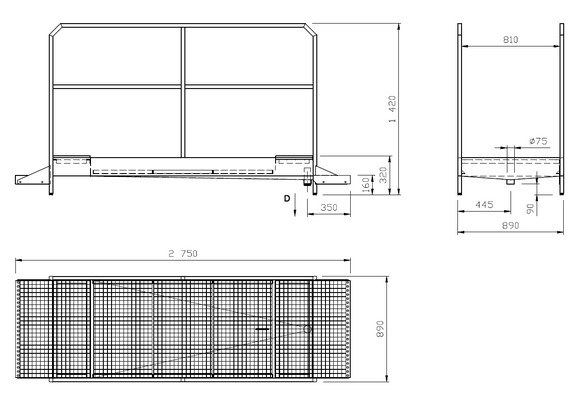

Figure - BDS 02 disinfection ford
b
D -outlet d = 75 mm
b
b
Product title
BDS 02 -
disinfection ford for on the floor instalation with railing - length 2750 mm
b
Download information about the product
dwgBDS 02 data for projectants - ( 155 kB )
