VL 04

stainless steel wall bucket sink with reversible grid

VL 04 stainless steel wall bucket sink with reversible grid

VL 04 is a small wall stainless bucket sink to be fixed to wall. The sink is completed by stainless reversible grid. Inner dimensions of the sink are 370 x 340 x 150 mm. The sink is provided with side bars for reinforcement. It is made of AISI 304 stainless steel (other materials per order). The sink contains plastic outlet.

VL 04 is manufactured from the stainless steel AISI 304, surface finish is matt (sandblasted). For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Basic technical information
Inner dimensions of sink:370 × 340 × 150 mm
Water outlet:d = 40 mm
Weight:5 kg
b
Version types
VL 04 - stainless steel wall bucket sink with reversible grid and outlet
b
Complete delivery
  • st.steel bucket sing with reversible grid
  • plastic waste siphon
  • small fittings
b
Requirements for setting up the construction
  1. Drainpipe is prepared in selected height (according to drawing) d = 40 mm.
b
Figure

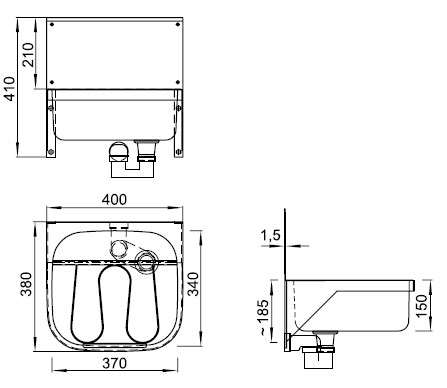

Figure - VL 04 stainless steel wall bucket sink with reversible grid
b
b
Product title
VL 04 -
stainless steel wall bucket sink with tilting grid and outlet
b
Download information about the product
dwgVL 04 data for projectants - ( 30 kB )
