VL 01

stainless steel bucket sink

VL 01 stainless steel bucket sink

VL 01 is a stainless steel bucket sink with full-open grid designed for food operations and kitchens. Its construction ensures resistance against damages and the full-open grid can serve as for putting a bucket or for filling and pouring the water. The sink can be fixed onto a wall by means of cantilever KV 1 or put to a free space on stand SV 01.

Bucket sinks than mentioned in catalogue as standard with other dimensions of sink and outlet can be made as per order.

The VL 01 stainless steel bucket sink, in its construction and finish, meets EU standards. It is designed for food operations.

Basic technical information
Outlet:75 mm
Clear opening of the outlet:56 mm
Inner dimension of the sink:400 x 500 x 300 mm
Weight:18,0 kg
b
Requirements for setting up the construction
  1. Set-up outlet 75 mm
b
Complete delivery
  • sink
  • full-open grid
  • pipe siphon
b
Made to order
  • KV - wall-mounted cantilever
  • SV - free space stand
b
Figure

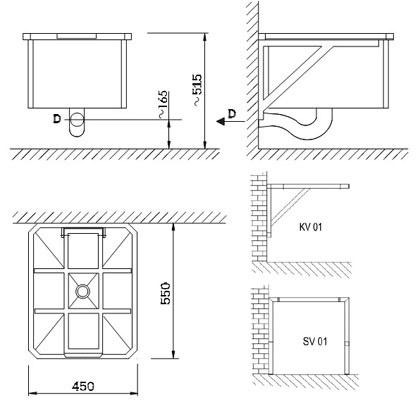

Figure - VL 01 stainless steel bucket sink
b
D -outlet
b
b
Product title
VL 01 -
stainless steel bucket sink (without stand or cantilever)
SV 01 -
stand for VL 01
KV 01 -
cantilever for VL 01
b
Download information about the product
dwgVL 01 data for projectants - ( 98 kB )
