AUL 03Z.LK

suspension stainless steel wash-trough with round inner corners, back wall and medical mixers

AUL 03Z.LK suspension stainless steel wash-trough with round inner corners, back wall and medical mixers

AUL 03Z.LK is a series of stainless steel wash troughs designed for medical environment. The troughs are deeper and higher than the usual ones to provide the user more space. The troughs are also equipped with mixers completed by medical lever. As for the model the number of mixers can be 1 to 4.

In compliance with requirements in medical industry the wash troughs are made of stainless steel with improved resistance to chlorine – AISI 316L (in contrary to standard stainless steel AISI 304 used for normal troughs).

The troughs are ballotini sand-blasted – decent mat finish. Outlet is positioned on the left or on the right (in front view on the lavatory) – please specify in the order.

AUL 03Z.LK is manufactured from the stainless steel AISI 316. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Version types
AUL 03Z.1LK - suspension st. steel wash trough for doctors with roundinner corners and 1 lever mixer - length 1250 mm
AUL 03Z.2LK - suspension st. steel wash trough for doctors with roundinner corners and 2 lever mixers - length 1900 mm
AUL 03Z.3LK - suspension st. steel wash trough for doctors with roundinner corners and 3 lever mixers - length 2500 mm
AUL 03Z.4LK - suspension st. steel wash trough for doctors with roundinner corners and 4 lever mixers - length 3000 mm
b
Basic technical information
Water outlet:d = 50 mm
Overall dimensions:L × 460 × 1030 mm
Inner dimensions of trough:L-60 × 360 × 200 mm
Material:AISI 316L
AUL 03Z.1LK
Length L:1250 mm
AUL 03Z.2LK
Length L:1900 mm
AUL 03Z.3LK
Length L:2500 mm
AUL 03Z.4LK
Length L:3000 mm
b
Requirements for setting up the construction
  1. Set up outlet d = 50 mm
  2. Set up hot and cold water inlets G 1/2" according to technical drawing
b
Complete delivery
  • Complete delivery
  • Outlet d = 50 mm
  • Suspension bar + fittings
  • Interconnecting water supply to individual mixers
b
Made to order
  • Different trough dimensions per customer's requirement
  • Different number of mixers / different types of mixers
  • Feet with / without foot rail to stand the trough on the floor
b

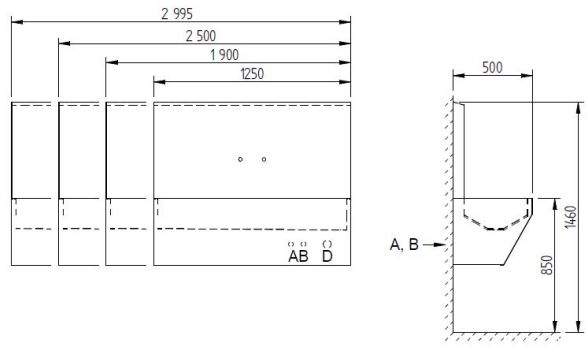

Figure

Figure - AUL 03Z.LK suspension stainless steel wash-trough with round inner corners, back wall and medical mixers
b
D -outlet (in this version on left side)
B -hot water G 1/2"
A -cold water G 1/2"
b
b
Product title
AUL 03Z.1LK -
suspension st. steel wash trough for doctors with roundinner corners and 1 lever mixer - length 1250 mm
AUL 03Z.2LK -
suspension st. steel wash trough for doctors with roundinner corners and 2 lever mixers - length 1900 mm
AUL 03Z.3LK -
suspension st. steel wash trough for doctors with roundinner corners and 3 lever mixers - length 2500 mm
AUL 03Z.4LK -
suspension st. steel wash trough for doctors with roundinner corners and 4 lever mixers - length 3000 mm
