AUL 05.L

suspension stainless steel wash trough for doctors with round inner corners

AUL 05.L suspension stainless steel wash trough for doctors with round inner corners

AUL 05.L is a series of stainless steel wash troughs designed for medical environment. In comparison to the standard AUL 05 series the medical lavatories of AUL 05.L series have a front cover and are, above all, made of stainless steel with improved resistance to chlorine required in medical industry – AISI 316L (standard AUL 05 series is made of common food stainless steel AISI 304 – it is not resistant to chlorine). The troughs are ballotini sand-blasted – decent mat finish. Outlet is positioned on the left or on the right (in front view on the lavatory) – please specify in the order.

The trough are supplied in 4 standard lengths 1250, 1900, 2500 and 3000 mm.

Per order we often produce troughs of different dimensions – please contact us with your requirements. Possible modification to other dimensions according to customer's requirements.

AUL 05.L is manufactured from the stainless steel AISI 316. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Version types
AUL 05.1L - suspension st. steel wash trough for doctors with round inner corners, length 1 250 mm
AUL 05.2L - suspension st. steel wash trough for doctors with round inner corners, length 1 900 mm
AUL 05.3L - suspension st. steel wash trough for doctors with round inner corners, length 2 500 mm
AUL 05.4L - suspension st. steel wash trough for doctors with round inner corners, length 3 000 mm
b
Basic technical information
Water outlet:for outled valve 6/4“
Overall dimensions:L × 430 × 420 mm
Inner dimensions of trough:L-60 × 330 × 200 mm
Material:AISI 316L
AUL 05.1L
Length L:1250 mm
AUL 05.2L
Length L:1900 mm
AUL 05.3L
Length L:2500 mm
AUL 05.4L
Length L:3000 mm
b
Requirements for setting up the construction
  1. Set up outlet according to the siphon/waste trap used. (Siphon is not included in delivery.)
b
Complete delivery
  • Stainless steel trough with fixing bar
  • Fittings
b
Made to order
  • On customer´s wish other lengths possible
b
Figure

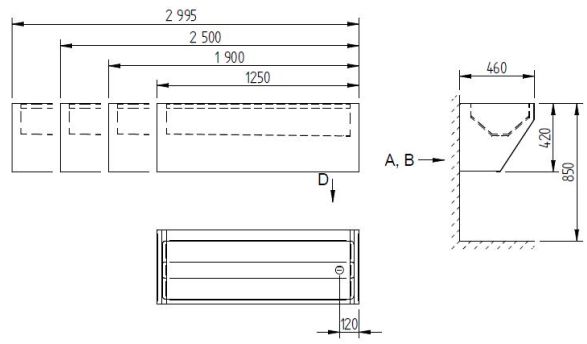

Figure - AUL 05.L suspension stainless steel wash trough for doctors with round inner corners
b
*D -outlet (in this version on left side)
b
b
Product title
AUL 05.1L -
suspension st. steel wash trough for doctors with round inner corners, length 1 250 mm
AUL 05.2 L -
suspension st. steel wash trough for doctors with round inner corners, length 1 900 mm
AUL 05.3 L -
suspension st. steel wash trough for doctors with round inner corners, length 2 500 mm
AUL 05.4 L -
suspension st. steel wash trough for doctors with round inner corners, length 3 000 mm
