suspension stainless steel wash trough for doctors

AUL 04.L suspension stainless steel wash trough for doctors

AUL 04.L is a series of stainless steel wash troughs designed for medical environment. In comparison to the standard AUL 04 series the medical troughs of AUL 04.L series have a front cover and are, above all, made of stainless steel with improved resistance to chlorine required in medical industry – AISI 316L (standard AUL 04 series is made of common food stainless steel AISI 304 – it is not resistant to chlorine). The troughs are ballotini sand-blasted – decent mat finish. Outlet is positioned on the left or on the right (in front view on the trough) – please specify in the order.

The troughs are supplied in 4 standard lengths 1250, 1900, 2500 and 3000 mm.

Per order we often produce troughs of different dimensions – please contact us with your requirements. Possible modification to other dimensions according to customer's requirements.

AUL 04.L is manufactured from the stainless AISI 316. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Version types
AUL 04.1L - suspension stainless steel wash trough for doctors - length 1250 mm
AUL 04.2L - suspension stainless steel wash trough for doctors - length 1900 mm
AUL 04.3L - suspension stainless steel wash trough for doctors - length 2500 mm
AUL 04.4L - suspension stainless steel wash trough for doctors - length 3000 mm
b
Basic technical information
Water outlet:for outled valve 6/4“
Overall dimensions:L × 430 × 420 mm
Inner dimensions of trough:L-60 × 330 × 200 mm
Material:AISI 316L
AUL 04.1L
Length L:1250 mm
AUL 04.2L
Length L:1900 mm
AUL 04.3L
Length L:2500 mm
AUL 04.4L
Length L:3000 mm
b
Requirements for setting up the construction
  1. Set up outlet according to the siphon/waste trap used. (Siphon is not included in delivery.)
b
Complete delivery
  • Stainless steel trough with fixing bar
  • Fittings
b
Made to order
  • On customer´s wish other lengths possible.
b
Figure

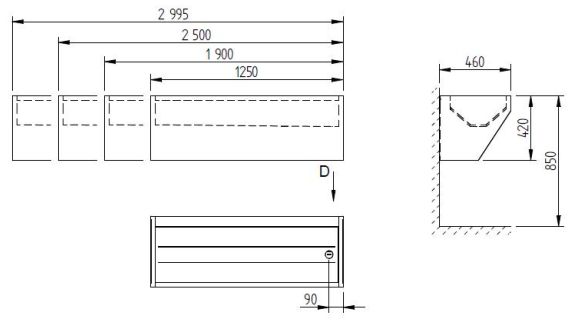

Figure - AUL 04.L suspension stainless steel wash trough for doctors
b
*D -outlet (in this version on left side)
b
b
Product title
AUL 04.1L -
suspension stainless steel wash trough for doctors - length 1250 mm
AUL 04.2L -
suspension stainless steel wash trough for doctors - length 1900 mm
AUL 04.3L -
suspension stainless steel wash trough for doctors - length 2500 mm
AUL 04.4L -
suspension stainless steel wash trough for doctors - length 3000 mm
