stainless steel wall mounted trough with round inner corners

AUL 05 stainless steel wall mounted trough with round inner corners

AUL 05 is a stainless steel wall mounted trough with round inner corners. Its construction enables installation of outflow arms, or sensor-controlled taps. The round inner corners make the maintenance easier because the sediments do net get stuck in the corners. The standard version of the trough is without openings for the taps. Openings can be made on a request.

Design type of the troughs can be either right or left (from a front point of view) in accordance with water inlet and outlet.

Version types
AUL 05.1 - wall-hang trough of length 1 250 mm
AUL 05.2 - wall-hang trough of length 1 900 mm
AUL 05.3 - wall-hang trough of length 2 500 mm
AUL 05.4 - wall-hang trough of length 3 000 mm
b
The AUL 05 stainless steel wash trough, in its construction and finish, meets EU standards and is mainly intended for food processing industry. Troughs can be produced also in other lengths according to the requirements of operations and the available space. It is necessary to mention the required version when ordering.
Basic technical information
Outlet:for outled valve 6/4“
Total dimension:L × 430 × 400 mm
Inner dimensions of trough :L-5 × 330 × 200 mm
AUL 05.1
Lenght L:1250 mm
Weight:17 kg
AUL 05.2
Lenght L:1900 mm
Weight:24 kg
AUL 05.3
Lenght L:2500 mm
Weight:31 kg
AUL 05.4
Lenght L:3000 mm
Weight:38 kg
b
Requirements for setting up the construction
  1. Set up an outlet according to the type of a siphon (siphon is not part of the delivery)
b
Complete delivery
  • trough
  • cantilever
  • fittings
b
Figure

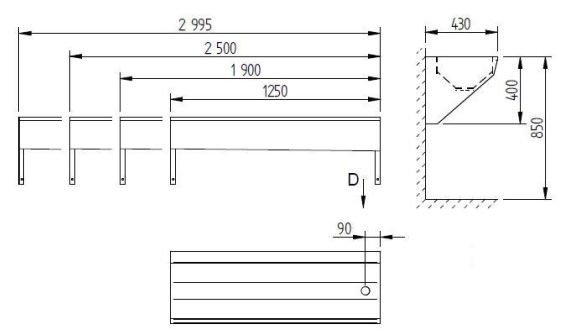

Figure - AUL 05 stainless steel wall mounted trough with round inner corners
b
D -outlet right version
D* -outlet left version
b
b
Product title
AUL 05.1 -
wall-hang trough of length 1 250 mm
AUL 05.2 -
wall-hang trough of length 1 900 mm
AUL 05.3 -
wall-hang trough of length 2500 mm
AUL 05.4 -
wall-hang trough of length 3000 mm
b
Download information about the product
dwgAUL 05.1 data for projectants - ( 61 kB )
dwgAUL 05.2 data for projectants - ( 62 kB )
dwgAUL 05.3 data for projectants - ( 62 kB )
dwgAUL 05.4 data for projectants - ( 62 kB )
