		AUL 03 stainless steel wash troughs

AUL 03 is a stainless steel wash troughs with sensor-controlled outflow arms. Water turns on automatically when the user's hands are placed within the sensor's range and turns off when they have been removed. Water stops running with a certain delay after the hands have been removed from the scanning zone. The trough is produced in a wall-hang version (AUL 03.Z) or fixed on a column (AUL 03.S). The water temperature is set by means of a thermostatic valve.

Wash trough can be additionally equipped with soap dispensers and disinfection lotions, paper towel dispensers, waste receptacles and other accessories. The finish of the troughs is either right or left (from front view) in accordance with water inlet and outlet. It is necessary to mention the required version when ordering.

Version types
AUL 03S.1 - trough on a column with two taps
AUL 03S.2 - trough on a column with three taps
AUL 03S.3 - trough on a column with four taps
AUL 03S.4 - trough on a column with five taps
AUL 03Z.1 - wall-hang trough with two taps
AUL 03Z.2 - wall-hang trough with three taps
AUL 03Z.3 - wall-hang trough with four taps
AUL 03Z.4 - wall-hang trough with five taps

All types are equipped with a thermostatic valve. AUL 03 troughs, in their construction and stainless steel finish, are designed for washrooms and dressing rooms of manufacturing plants and food processing industry.

Basic technical information
Water inlet:	G 1/2“
Outlet:	d = 40 mm
Power supply:	12 V, 50 Hz
Source of power supply:	ZAC 1/20 (AUL 03.1 až .2)
	ZAC 1/50 (AUL 03.3)
AUL 03.1
Number of taps:	2
Power requirement:	12 VA
Weight:	40 kg (AUL 03Z.1 – 37 kg)
AUL 03.2
Number of taps:	3
Power requirement:	18 VA
Weight:	50 kg (AUL 03Z.2 – 46 kg)
AUL 03.3
Number of taps:	4
Power requirement:	24 VA
Weight:	60 kg (AUL 03Z.3 – 55 kg)
AUL 03.4
Number of taps:	5
Power requirement:	30 VA
Weight:	70 kg (AUL 04Z.3 – 64 kg)

Requirements for setting up the construction
Set up water inlet at the height of 400 mm from floor level and approx. 300 mm from a specified end of the trough Set up outlet d = 40 mm in the height f 400 mm from floor level and approx. 150 mm from a specified end of the trough Set up cable for power supply – 12 V, 50 Hz from source of power supply ZAC in the height of 400 – 500 mm, approx. 300 mm from end of trough where water inlet is set

Complete delivery
trough with sheathing and rear facing column (only AUL 03S) outflow arms (2 – 4 pcs as per type of trough) electronics with photocell (2 – 4 pcs as per type of trough) electromagnetic valves (2 – 4 pcs as per type of trough) corner valves – 2 pcs thermostatic valve – 1 pc connecting hoses fittings siphon

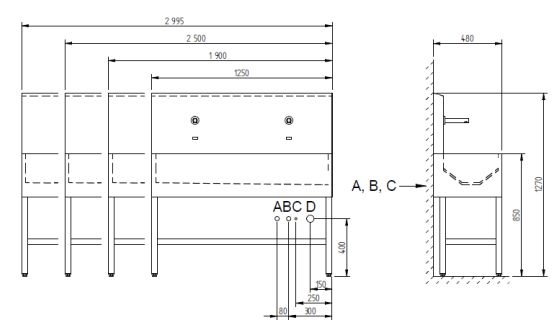

Figure

A -	cold water inner pipe G 1/2"	D -	outlet
B -	hot water inner pipe G1/2"	E -	zone of scaning
C -	electricity supply

Product title

AUL 03S.1 -

wash trough, free standing with 2 taps 1200x480x1270 - 12V, 50Hz

AUL 03S.2 -

wash trough, free standing with 3 taps 1900x480x1270 - 12V, 50Hz

AUL 03S.3 -

wash trough, free standing with 4 taps 2500x480x1270 - 12V, 50Hz

AUL 03S.4 -

wash trough, free standing with 5 taps 3000x480x1270 - 12V, 50Hz

AUL 03Z.1 -

wash trough, wall mounted with 2 taps - 12V, 50Hz

AUL 03Z.2 -

wash trough, wall mounted with 3 taps - 12V, 50Hz

AUL 03Z.3 -

wash trough, wall mounted with 4 taps - 12V, 50Hz

AUL 03Z.4 -

wash trough, wall mounted with 5 taps - 12V, 50Hz

Download information about the product
AUL 03S.1 data for projectants - ( 96 kB )
AUL 03S.2 data for projectants - ( 96 kB )
AUL 03S.3 data for projectants - ( 96 kB )
AUL 03S.4 data for projectants - ( 65 kB )
AUL 03Z.1 data for projectants - ( 96 kB )
AUL 03Z.2 data for projectants - ( 96 kB )
AUL 03Z.3 data for projectants - ( 96 kB )
