		AUL 01, AUL 02 stainless steel wash-troughs

AUL 01 and AUL 02 are stainless steel wash-troughs with sensor-controlled outflow arms. Water turns on automatically when the user's hands are placed within the sensor's range and turns off when they have been removed. Water stops running with a certain time delay after the hands have been removed from the scanning zone. The water temperature is set by means of a thermostatic valve for all outflow arms at once.

The wash-trough can be equipped with soap and disinfection lotion dispensers, paper towel dispensers, waste receptacles and other accessories. The finish of the troughs is either right or left (from the front view) in accordance with the water inlet and outlet. It is necessary to mention the required version when ordering.

Version types
AUL 01.1 - one-sided trough with two taps
AUL 01.2 - one-sided trough with three taps
AUL 01.3 - one-sided trough with four taps
AUL 01.4 - one-sided trough with five taps
AUL 02.1 - double-sided trough with four taps
AUL 02.2 - double-sided trough with six taps
AUL 02.3 - double-sided trough with eight taps
AUL 02.4 - double-sided trough with ten taps

All types are equipped with thermostatic valve. All AUL 01 and AUL 02 wash-troughs, in their construction and stainless steel finish, are designed for washrooms and dressing rooms of manufacturing plants and food processing industry.

Basic technical information
Water inlet:	G 1/2“
Outlet:	d = 40 mm
Power supply:	12 V, 50 Hz
Source of power supply:	ZAC 1/20 (AUL 01.1, .2)
	ZAC 1/50 (AUL 01.3, 02.1, .2, .3)
AUL 01.1
Number of taps:	2
Power requirement:	12 VA
Weight:	45 kg
AUL 02.1
Number of taps:	2 x 2
Power requirement:	24 VA
Weight:	85 kg
AUL 01.2
Number of taps:	3
Power requirement:	18 VA
Weight:	67 kg
AUL 02.2
Number of taps:	2 x 3
Power requirement:	36 VA
Weight:	130 kg
AUL 01.3
Number of taps:	4
Power requirement:	24 VA
Weight:	80 kg
AUL 02.3
Number of taps:	2 x 4
Power requirement:	48 VA
Weight:	155 kg
AUL 01.4
Number of taps:	5
Power requirement:	30 VA
Weight:	92 kg
AUL 02.4
Number of taps:	2 x 5
Power requirement:	60 VA
Weight:	180 kg

Requirements for setting up the construction
Set up water inlet at the height of 400 mm from floor level and approx. 300 mm from a specified end of the trough Set up outlet d = 40 mm in the height f 400 mm from floor level and approx. 150 mm from a specified end of the trough Set up cable for power supply – 12 V, 50 Hz from source of power supply ZAC in the height of 400 – 500 mm, approx. 300 mm from end of trough where water inlet is set

Complete delivery
trough with sheathing and rear facing column outflow arms (2 – 10 pcs as per type of trough) electronics with photocell head (2 – 10 pcs as per type of trough) electromagnetic valves (2 – 10 pcs as per type of trough) corner valves – 2 pcs (up to 4 taps, when more taps, the amount of water is adjusted by means of bolting) thermostatic valve – (AUL 02 – 2 pcs) connecting hoses fittings siphon

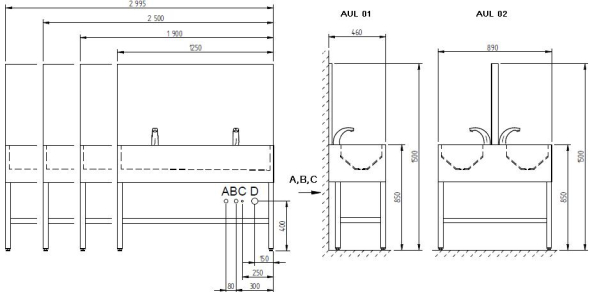

Figure

A -	cold water inner pipe G 1/2"	D -	outlet
B -	hot water inner pipe G1/2"	E -	zone of scaning
C -	electricity supply

Product title

AUL 01.1 -

wash trough, free standing with 2 taps 1250x500x1500 - 12V, 50Hz

AUL 01.2 -

wash trough, free standing with 3 taps 1900x500x1500 - 12V, 50Hz

AUL 01.3 -

wash trough, free standing with 4 taps 2500x500x1500 - 12V, 50Hz

AUL 01.4 -

wash trough, free standing with 5 taps 3000x500x1500 - 12V, 50Hz

AUL 02.1 -

double-faced wash trough, free standing with 4 taps 1250x500x1500 - 12V, 50Hz

AUL 02.2 -

double-faced wash trough, free standing with 6 taps 1900x500x1500 - 12V, 50Hz

AUL 02.3 -

double-faced wash trough, free standing with 8 taps 2500x500x1500 - 12V, 50Hz

AUL 02.4 -

double-faced wash trough, free standing with 10 taps 3000x500x1500 - 12V, 50Hz
