PZ 014LP

draining trough for embedding of tiles - between three walls

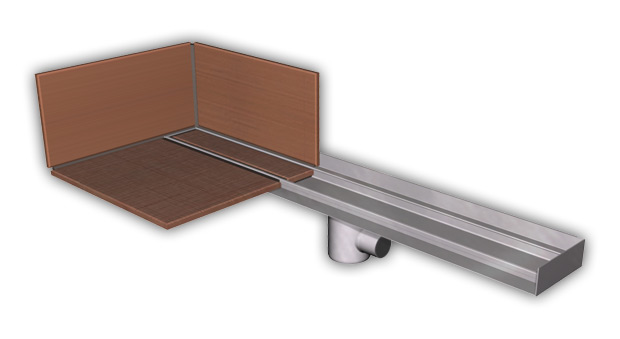

PZ 014LP draining trough for embedding of tiles - between three walls

PZ 014LP PZ 014LP is a stainless steel draining trough for embedding of tiles, designed to be located between three walls. These floor troughs represent a modern trend in draining of shower units, entire bathrooms or other spaces. It is a clear and practical solution as far as their design is concerned, replacing the already out-of-date shower baths.

Total trough height for tiles just 110 mm.Other lengths precisely in accordance with your project can be produced to order. Troughs can go with adjusting legs for easier putting it to a level.

This product is manufactured from the stainless steel AISI 304. For cleaning we recommend WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Basic technical information
Possible lengths:Designed for a shower unit of 800 and 900 mm
Outlet:d = 40 mm
Max. water flow:30 lt/min
Material:st.steel AISI 304 (on order AISI 316)
Material thickness:1,5 mm (grating 2mm)
Weight:5-6 kgs according to the version type and length
b
Requirements for setting up the construction
  1. Set-up floor opening of dimensions according to the trough fitting technical drawing
  2. Outlet for connection to trough outlet of d = 40 mm ready
b
Complete delivery
  • stainless steel draining trough
  • stainless steel outlet including waste trap
b
Figure

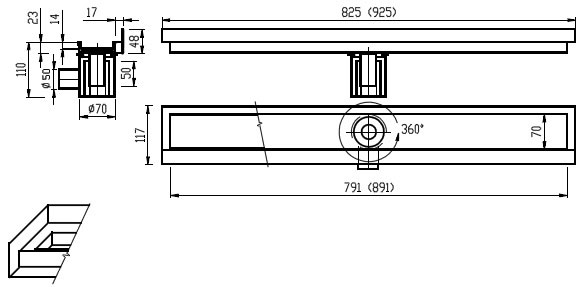

Figure - PZ 014LP draining trough for embedding of tiles - between three walls
b
b
Download information about the product
dwgPZ 014 LP data for projectants - ( 53 kB )
