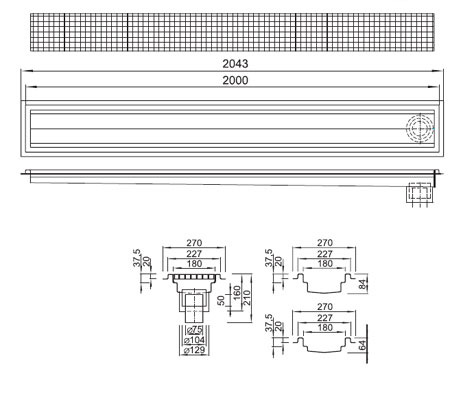

OZ 01 is a box-like stainless floor channel with braz and grid with 25 x 25 mm mesh. It is 2000 mm long. This channel is a basic type to help the initial idea. Most of the production uses applications priced to size and specific situation.

We produce channels in various lengths, widths, depths, with or without rims, with locating feet and walling-in brackets, with L and U channel connection, common brazes for long draining systems – through a flange or welded. The sewerage can also be arranged variably as required – diameter, direction of draining, either without or with wet or dry braz. Channel with other grids can also be provided (e.g. solid plate with cut holes).

Send your demand on your required layout – we are quick at providing prices!

The troughs are manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).
