PZ 05

draining trough for cast floor with vertical outlet

PZ 05 draining trough for cast floor with vertical outlet
PZ 05 draining trough for cast floor with vertical outlet

PZ 05 is a stainless steel floor trough intended for cast floor. Vertical outlet d = 50 mm is located on left or right side from front view (the side must be specified with order). The trough can be equipped with adjustable screws for levelling the floor unevenness and is offered in three standard lengths – 900 and 1500 mm. Other custom-made lengths are possible. Wide range of grating designs available (also customer made).

Requirements for setting up the construction
  1. Suitabale hole in the floor for the trough
  2. Set-up waste piping as per picture
  3. Set-up dampproofing as per construction project
b
Complete delivery
  • Draining floor trough
  • Grating
  • Adjustable screews (only for version including adjustable screews)
  • Outlet d = 50 mm as per picture
b
Figure

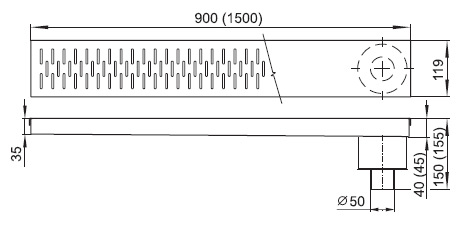

Figure - PZ 05 draining trough for cast floor with vertical outlet
b
STANDARD DESIGNS OF GRATING
Figure - PZ 05 draining trough for cast floor with vertical outlet
b
CUSTOM-MADE GRATINGS
Figure - PZ 05 draining trough for cast floor with vertical outlet
b
b
Product title
PZ 05 -
draining trough for cast floor with vertical outlet
b
Download information about the product
dwgPZ 05 data for projectants - ( 35 kB )
