AUM 025N a AUM 025Z

stainless steel washbasin

AUM 025N a AUM 025Z stainless steel washbasin

AUM 025 is a stainless steel washbasin intended to be mounted on the wall. Due to its shape it is suitable to substitute standard ceramic washbasins as more durable and hygienic version.

The washbasin is produced in two standard version types: with fixing consoles (AUM 025N) and more durable version with stainless sheathing (AUM 025Z). Surface finish is standardly brushed, but sandblasted matt finish is possible on order.

In standard version the washbasin does not have an opening for the tap. It is possible to make an opening free of charge. Diameter and location on the washbasin must be specified with the order.

The washbasin can be fitted with an automatic tap AUM 3 in all version types - for one water, for hot and cold water or with thermostatic valve. All version types can be supplied with 12 V, 50 Hz (from source ZAC) or with 6 V (from AA batteries).

The washbasin is manufactured from the stainless steel AISI 304. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 8931211).

Version types
Washbasins without tap :
AUM 025N - without sheathing , with outlet, without automatic tap
AUM 025Z - with sheathing , with outlet, without automatic tap
Version types with automatic tap, supplied with 12 V, 50 Hz :
AUM 025N.1 - automatic washbasin w/out sheathing with connection to one water
AUM 025N.2 - automatic washbasin w/out sheathing w/ connection to hot and cold water
AUM 025N.TV - automatic washbasin w/out sheathing with thermostatic valve
AUM 025Z.1 - automatic washbasin with sheathing with connection to one water
AUM 025Z.2 - automatic washbasin with sheathing w/ connection to hot and cold water
AUM 025Z.TV - automatic washbasin with sheathing with thermostatic valve
Version types with automatic tap supplied with 6 V (4x AA battery) :
AUM 025N.1B - automatic washbasin w/out sheathing with connection to one water
AUM 025N.2B - automatic washbasin w/out sheathing w/ connection to hot and cold water
AUM 025N.TVB - automatic washbasin w/out sheathing with thermostatic valve
AUM 025Z.1B - automatic washbasin with sheathing with connection to one water
AUM 025Z.2B - automatic washbasin with sheathing w/ connection to hot and cold water
AUM 025Z.TVB - automatic washbasin with sheathing with thermostatic valve
b
Basic technical information
Radius of sensor:adjusted automatically
Water inlet:G 1/2“
Outlet:d = 40 mm
Dimensions:450 x 320 x 192 mm - AUM 025N
 453 x 322 x 175 mm - AUM 025Z
Inner dimensions of sink:390 x 283 x 122 mm
Adjustable time of after flow:0÷4 s (adjusted to 1 s)
IP protection:IP 55
napájecí napětí:12 V, 50 Hz (AUM 025 N.1, .2. TV; AUM 025 Z.1, .2, .TV)
 6 V - 4 x AA battery (AUM 025 N.1B, .2B, .TV; AUM 025 Z.1B, .2B, .TVB)
Power supply:ZAC 1/20 - max. 3× AUM 025 N.1, Z.1 N.TV, Z.TV; max. 2x AUM 025 N.2, Z.2)
 ZAC 1/50 - max. 8× AUM 025 N.1, Z.1 N.TV, Z.TV; max. 5x AUM 025 N.2, Z.2)
Water pressure:1 - 10 Bar (by 12 V version)
 2 - 8 Bar (by 6 V version)
Weight:4 kg
b
Requirements for setting up the construction
  1. Set-up water inlet G 1/2"
  2. Set-up outlet d = 40 mm
  3. Set-up electric cable for 12 V from source ZAC (only by 12 V version)
b
Complete delivery
  • stainless washbasin with consoles (AUM 025 N)
  • stainless washbasin with sheathing (AUM 025 Z)
  • waste trap
  • small anchoring material
  • automatic tap (only with version with automatic tap)
b
Figure

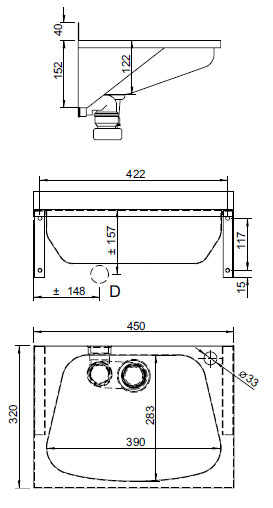

AUM 025N
Figure - AUM 025N a AUM 025Z stainless steel washbasin
b
D -outlet
b

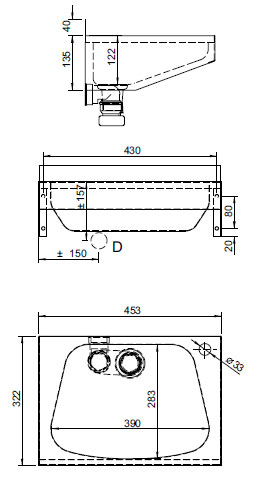

AUM 025Z
Figure - AUM 025N a AUM 025Z stainless steel washbasin
b
D -outlet
b
b
Download information about the product
dwgAUM 025 N data for projectants - ( 28 kB )
dwgAUM 025Z data for projectants - ( 30 kB )
