| | AUM 09sensor-controlled stainless steel washbasin | | | | | |
|
 AUM 09 is a sensor-controlled stainless steel wall-mounted washbasin. The washbasin is equipped with sensor-controlled outlet arm. Water turns on automatically when the user's hands are placed within the sensor's range and turns off when they have been removed. Water stops running with a certain time delay after the hands have been removed from the scanning zone. The washbasin is equipped with a mechanism against excess pressure of hot and cold water. |
| | | Version types | | AUM 09.1 - for one water 12V | | AUM 09.2 - for hot and cold water 12V | | AUM 09.TV - with thermostatic valve 12V | | AUM 09.E - with through-flow heater | | AUM 09.1B - for one water 6V | | AUM 09.2B - for hot and cold water 6V | | AUM 09.TVB - with thermostatic valve 6V |  | | The AUM 09 stainless steel washbasin, in its construction and finish, meets EU standards and is mainly intended for food processing industry. It may be utilized in any other operations, where increased hygienic standards along with maximal water savings are required. |
| | | Basic technical information | | Radius of sensor: | 0 – 0,3 m | | Water inlet: | G 1/2“ | | Outlet: | d = 50 mm | | Inner dimension of the washbasin: | 370 x 340 x 150 mm | | Electricity protection: | IP 55 | | Adjustable time of water flow: | 0 – 4 sec. (adjusted to 1 sec.) | | AUM 09.1, .2, .TV | | | Water pressure: | 0,1 – 1,0 MPa | | Power supply: | 12 V, 50 Hz, or for battery versions 6V (4 x AA battery) | | Power requirement: | 6 VA | | Source of power supply: | ZAC 1/20 (max. 3 x AUM 09) | | | ZAC 1/50 (max. 8 x AUM 09) | | Weight: | 9 kg | | AUM 09.E | | | Water pressure: | 0,2 – 0,6 MPa | | Recommended pressure: | 0,3 MPa (without variances and air bubbles) | | Power supply: | 230 V, 50 Hz | | Power requirement: | 3 500 W | | Weight: | 10,5 kg | |
| | | Requirements for setting up the construction | - Set-up water inlet as per picture
- Set-up outlet d = 40 mm
- Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC (does not apply to AUM 09.E)
- Set-up cable CYKY 3C x 1,5 – 2,5 (for AUM 09.E)
| |
| | | Complete delivery | - sink with sheathing
- outflow arm
- photocell head
- electronics
- electromagnetic valve
- corner valve with filter (AUM 09.2, .TV – 2 pcs)
- spherical valve (AUM 09.TV)
- mixing valve (AUM 09.2)
- thermostatic valve (AUM 09.TV)
- through-flow water heater (AUM 09.E)
- source of power supply ZAC E – 12 V, 50 Hz (AUM 09.E)
- waste siphon
- connecting hoses
- small assembly materials
| |

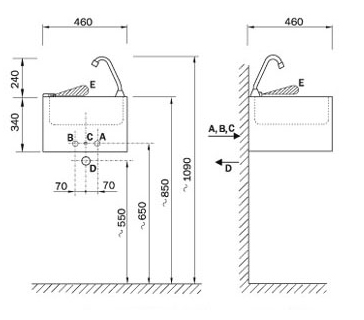

| | | Figure |
 | | | | A - | COLD WATER (AUM 09.2, .TV, E)
MIXED WATER (AUM 09.1) Innerpipe G 1/2" | | D - | OUTLET | | B - | HOT WATER (AUM 09.2, .TV) Inner pipe G 1/2" | | E - | ZONE OF SCANING | | C - | ELECTRICITY SUPPLY | |
| | | |
| |
| AUM 09.1 - | washbasin, middle-size sink, wall mounted, connection to one water - 12V, 50Hz |
| AUM 09.1B - | washbasin, middle-size sink, wall mounted, connection to one water - 6V (4x1,5) |
| AUM 09.2 - | washbasin, middle-size sink, wall mounted, connection to hot and cold water - 12V, 50Hz |
| AUM 09.2B - | washbasin, middle-size sink, wall mounted, connection to hot and cold water - 6V (4x1,5) |
| AUM 09.E - | washbasin, middle-size sink, with electric through-flow water heater - 230V, 50Hz |
| AUM 09.TV - | washbasin, middle-size sink, wall mounted, with thermostatic valve - 12V, 50Hz |
| AUM 09.TVB - | washbasin, middle-size sink, wall mounted, with thermostatic valve - 6V (4x1,5) |
| |
|
|
|
AUM 09.1 data for projectants - ( 43 kB )
