| | AUM 011stainless steel sensor-controlled washbasin | | | | | |
|
 AUM 011 is the stainless steel, sensor-controlled, wall-mounted washbasin. The basin is equipped with a stainless steel facing, aerator and sensor.
Water turns on automatically when the user's hands are placed within the sensor's range and turns off when they have been removed. Water stops running with a certain time delay after the hands have been removed from the scanning zone.
The washbasin is equipped with the mechanism against excess pressure of hot and cold water.
AUM 011 is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1). |
| | | Version types | | Washbasins supplied from source of power supply : | | AUM 011.1 - for one water 12V | | AUM 011.2 - for hot and cold water 12V | | AUM 011.TV - with thermostatic valve 12V | | AUM 011.E - with through-flow heater | | Washbasins supplied from AA batteries : | | AUM 011.1B - for one water 6V | | AUM 011.2B - for hot and cold water 6V | | AUM 011.TVB - with thermostatic valve 6V |  | | The AUM 11 stainless steel washbasin, in its construction and finish, meets EU standards and is mainly intended for food processing industry. It may be utilized in any other operations, where increased hygienic standards along with maximal water savings are required. |
| | | Basic technical information | | Sensor radius : | self-adjusting | | Water inlet: | G1/2" | | Outlet: | D=40 mm | | Inner basin dimension: | 370 x 240 x 150 mm | | Adjustable after-action delay time : | 0 – 4 s ( set on 1 sec ) | | AUM 011.1, .2, .TV | | | Water pressure: | 0,1 – 1,0 MPa | | Electric powering : | 12V, 50 Hz, or for battery versions 6V (4 x AA battery) | | Input:: | 6 VA | | Powering source: | ZAC 1/20 ( max. 3 x AUM 011 ) | | Electricity protection: | IP 55 | | Weight: | 11 kg | | AUM 011.E | | | Water pressure: | 0,2 – 0,6 MPa | | Recommended pressure: | 0,3 MPa ( without variances and air bubbles ) | | Power supply: | 230 V, 50 Hz | | Input: | 3 500 W | | Electricity protection: | IP 54 | | Weight: | 12,5 kg | |
| | | Requirements for setting up the construction | - The water supply set up – see the picture
- The outlet set up on D= 40 mm
- The power-supply cable is fixed for powering 12 V, 50 Hz from power-supply source ZAC ( not applicable for AUM 011.E )
- The power-supply cable CYKY 32C x 1,5 – 2,5 for AUM 011.E is wired
| |
| | | Complete delivery | - Sink with sheathing
- Aerator
- Electronics with the sensor
- Electromagnetic valve
- Corner valve with filter ( AUM 011.2, .TV – 2 pcs )
- Spherical valve ( AUM 011.2 TV )
- Mixing valve ( AUM 011.2 )
- Thermostatic valve (AUM 011.TV)
- Through flow water heater ( AUM 011.E )
- Source of power supply ZAC E – 12 V, 50 Hz ( AUM 011.E )
- Waste siphon
- Connecting hoses
- Cantilever
- Fittings
| |

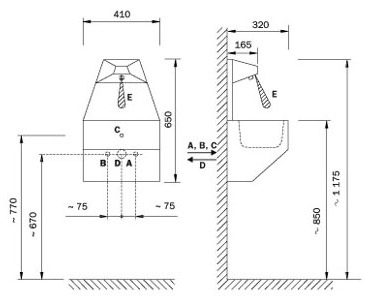

| | | Figure |
 | | | | A - | cold water
mixed water
inner pipe G1/2" | | D - | outlet | | B - | hot water
inner pipe G1/2" | | E - | zone of scaning | | C - | electricity supply | |
| | | |
| |
| AUM 011.1 - | washbasin, middle-size sink, wall mounted, connection to one water - 12V, 50Hz |
| AUM 011.1B - | washbasin, middle-size sink, wall mounted, connection to one water - 6V (4x1,5) |
| AUM 011.2 - | washbasin, middle-size sink, wall mounted, connection to hot and cold water - 12V, 50Hz |
| AUM 011.2B - | washbasin, middle-size sink, wall mounted, connection to hot and cold water - 6V (4x1,5) |
| AUM 011.E - | washbasin, middle-size sink, with electric through-flow water heater - 230V, 50Hz |
| AUM 011.TV - | washbasin, middle-size sink, wall mounted, with thermostatic valve - 12V, 50Hz |
| AUM 011.TVB - | washbasin, middle-size sink, wall mounted, with thermostatic valve - 6v (4x1,5) |
| |
|
|
|
AUM 011.1 data for projectants - ( 98 kB )
