| | AUM 08sensor-controlled stainless steel washbasin | | | | | |
|
 AUM 08 is a sensor-controlled stainless steel wall-mounted washbasin. The washbasin is equipped with stainless steel casing and a sensor-controlled outlet arm. Water turns on automatically when the user's hands are placed within the sensor's range and turns off when they have been removed. Water stops running with a certain time delay after the hands have been removed from the scanning zone. The washbasin is equipped with a mechanism against excess pressure of hot and cold water.
AUM 08 is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1). |
| | | Version types | | AUM 08 - stainless steel washbasin without tap | | Washbasins supplied from source of power supply : | | AUM 08.1 - for one water 12V | | AUM 08.2 - for hot and cold water 12V | | AUM 08.TV - with thermostatic valve 12V | | AUM 08.E - with through-flow heater | | Washbasins supplied from AA batteries : | | AUM 08.1B - for one water 6V | | AUM 08.2B - for hot and cold water 6V | | AUM 08.TVB - with thermostatic valve 6V |  | | The AUM 08 stainless steel washbasin, in its construction and finish, meets EU standards and is mainly intended for food processing industry. It may be utilized in any other operations, where increased hygienic standards along with maximal water savings are required. |
| | | Basic technical information | | Radius of sensor: | self-adjusting | | Water inlet: | G 1/2“ | | Outlet: | d = 40 mm | | Inner dimension of the washbasin: | 370 x 340 x 150 mm | | Adjustable time of water flow: | 0 – 4 sec. (adjusted to 1 sec.) | | AUM 08.1, .2, .TV | | | Water pressure: | 0,1 – 1,0 MPa | | Power supply: | 12 V, 50 Hz, or for battery versions 6V (4 x AA battery) | | Power requirement: | 6 VA | | Source of power supply: | ZAC 1/20 (max. 3 x AUM 08) | | | ZAC 1/50 (max. 8 x AUM 08) | | Electricity protection: | IP 55 | | Weight: | 15 kg | | AUM 08.E | | | Water pressure: | 0,2 – 0,6 MPa | | Recommended pressure: | 0,3 MPa (without variances) | | Power supply: | 230 V, 50 Hz | | Power requirement: | 3 500 W | | Electricity protection: | IP 54 | | Weight: | 16,5 kg | |
| | | Requirements for setting up the construction | - Set-up water inlet as per picture
- Set-up outlet d = 40 mm
- Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC (does not apply to AUM 08.E)
- Set-up cable CYKY 3C x 1,5 – 2,5 (for AUM 08.E)
| |
| | | Complete delivery | - sink with sheathing
- outflow arm
- electronics with sensor
- electromagnetic valve
- corner valve with filter (AUM 08.2 and .TV – 2 pcs)
- spherical valve (AUM 08.TV)
- mixing valve (AUM 08.2)
- thermostatic valve (AUM 08.TV)
- through-flow water heater (AUM 08.E)
- source of power supply ZAC E – 12 V, 50 Hz (AUM 08.E)
- waste siphon
- connecting hoses
- cantilever
- small assembly materials
| |

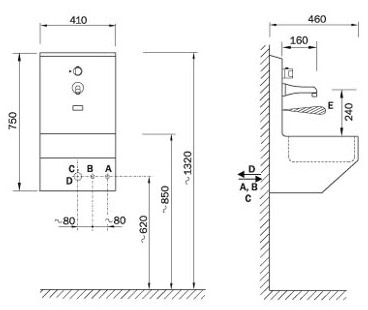

| | | Figure |
 | | | | A - | cold water
mixed water
inner pipe G1/2" | | D - | outlet | | B - | hot water
inner pipe G1/2" | | E - | zone of scaning | | C - | electricity supply | |
| | | |
| |
| AUM 08 - | washbasin, middle-size sink, wall mounted, without tap |
| AUM 08.1 - | washbasin, middle-size sink, wall mounted, connection to one water - 12V, 50Hz |
| AUM 08.1B - | washbasin, middle-size sink, wall mounted, connection to one water - 6V (4x1,5) |
| AUM 08.2 - | washbasin, middle-size sink, wall mounted, connection to hot and cold water - 12V, 50Hz |
| AUM 08.2B - | washbasin, middle-size sink, wall mounted, connection to hot and cold water - 6V (4x1,5) |
| AUM 08.E - | washbasin, middle-size sink, with electric through-flow water heater - 230V, 50Hz |
| AUM 08.TV - | washbasin, middle-size sink, wall mounted, with thermostatic valve - 12V, 50Hz |
| AUM 08.TVB - | washbasin, middle-size sink, wall mounted, with thermostatic valve - 6V (4x1,5) |
| |
|
|
|
AUM 08.1 data for projectants - ( 95 kB )
