| | AUM 07sensor-controlled stainless steel washbasin | | | | | |
|
 AUM 07 is a sensor-controlled stainless steel washbasin intended mainly for assembling in slaughterhouse lines or eventually onto a wall with a limited space. The washbasin is equipped with sensor-controlled outlet arm. Water turns on automatically when the user's hands are placed within the sensor's range and turns off when they have been removed. Water stops running with a certain time delay after the hands have been removed from the scanning zone. The washbasin is equipped with a mechanism against excess pressure of hot and cold water.
AUM 07 is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1). |
| | | Version types | | AUM 07 - stainless steel washbasin without tap | | Washbasins supplied from source of power supply : | | AUM 07.1 - for one water 12V | | AUM 07.2 - for hot and cold water 12V | | AUM 07.TV - with thermostatic valve 12V | | AUM 07.E - with through-flow heater | | Washbasins supplied from AA batteries : | | AUM 07.1B - for one water 6V | | AUM 07.2B - for hot and cold water 6V | | AUM 07.TVB - with thermostatic valve 6V |  | | The AUM 07 stainless steel washbasin, in its construction and finish, meets EU standards and is mainly intended for food processing industry. It may be utilized in any other operations, where increased hygienic standards along with maximal water savings are required. |
| | | Basic technical information | | Radius of sensor: | self-adjusting | | Water inlet: | G 1/2“ | | Outlet: | d = 40 mm | | Inner dimension of the washbasin: | 300 x 240 x 100 mm | | Adjustable time of water flow: | 0 – 4 sec. (adjusted to 1 sec.) | | AUM 07.1, .2, .TV | | | Water pressure: | 0,1 – 1,0 MPa | | Power supply: | 12 V, 50 Hz, or for battery versions 6V (4 x AA battery) | | Power requirement: | 6 VA | | Source of power supply: | ZAC 1/20 (max. 3 x AUM 07) | | | ZAC 1/50 (max. 8 x AUM 07) | | Electricity protection: | IP 55 | | Weight: | 8 kg | | AUM 07.E | | | Water pressure: | 0,2 – 0,6 MPa | | Recommended pressure: | 0,3 MPa (without variances and air bubbles) | | Power supply: | 230 V, 50 Hz | | Power requirement: | 3 500 W | | Electricity protection: | IP 54 | | Weight: | 9,5 kg | |
| | | Requirements for setting up the construction | - Set-up water inlet as per picture
- Set-up outlet d = 40 mm
- Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC (does not apply to AUM 07.E)
- Set-up cable CYKY 3C x 1,5 – 2,5 (for AUM 07.E)
| |
| | | Complete delivery | - sink with sheathing
- outflow arm
- photocell head
- electronics
- electromagnetic valve (AUM 07.2, .TV – 2 pcs)
- corner valve with filter (AUM 07.2)
- spherical valve (AUM 07.TV)
- thermostatic valve (AUM 07.TV)
- through-flow water heater (AUM 07.E)
- source of power supply ZAC E – 12 V, 50 Hz (AUM 07.E)
- waste siphon
- connecting hoses
- small assembly materials
| |

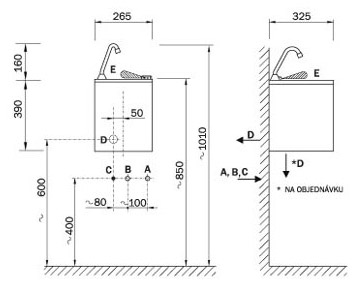

| | | Figure |
 | | | | A - | cold water
mixed water
inner pipe G1/2" | | E - | zone of scaning | | B - | hot water
inner pipe G1/2" | | T - | thermostatic valve (AUM 07.TV) | | C - | electricity supply | | * - | made to order | | D - | outlet | |
| | | |
| |
| AUM 07 - | washbasin, small sink, wall mounted, without tap |
| AUM 07.1 - | washbasin, small sink, wall mounted, connection to one water - 12V, 50Hz |
| AUM 07.1B - | washbasin, small sink, wall mounted, connection to one water - 6V (4x1,5) |
| AUM 07.2 - | washbasin, small sink, wall mounted, connection to hot and cold water - 12V, 50Hz |
| AUM 07.2B - | washbasin, small sink, wall mounted, connection to hot and cold water - 6V (4x1,5) |
| AUM 07.E - | washbasin, small sink, with electric through-flow water heater - 230V, 50Hz |
| AUM 07.TV - | washbasin, small sink, wall mounted, with thermostatic valve - 12V, 50Hz |
| AUM 07.TVB - | washbasin, small sink, wall mounted, with thermostatic valve - 6V (4x1,5) |
| |
|
|
|
AUM 07.1 data for projectants - ( 96 kB )
