AUM 06

sensor-controlled stainless steel free-standing washbasin

AUM 06 sensor-controlled stainless steel free-standing washbasin

AUM 06 is a sensor-controlled stainless steel free-standing washbasin. The washbasin is equipped with stainless steel casing and a sensor-controlled outlet arm. Water turns on automatically when the user's hands are placed within the sensor's range and turns off when they have been removed. Water stops running with a certain time delay after the hands have been removed from the scanning zone.

A standard version can be equipped with cantilevers:

KR 06 - for a paper towel dispenser and a waste receptacle

KH 06 - with a hose for floor cleaning

KS 06 - for knives sanitation container

The temperature of the outgoing water for the hose can be adjusted by the thermostatic valve or mixing valve (the water temperature can not be adjusted if it is connected only to one water supply).

AUM 06 is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Version types
AUM 06 - stainless steel washbasin without tap
Washbasins supplied from source of power supply :
AUM 06.1 - for one water 12V
AUM 06.2 - for hot and cold water 12V
AUM 06.TV - with thermostatic valve 12V
AUM 06.E - with through-flow heater
Washbasins supplied from AA batteries :
AUM 06.1B - for one water 6V
AUM 06.2B - for hot and cold water 6V
AUM 06.TVB - with thermostatic valve 6V
b
The AUM 06 stainless steel washbasin, in its construction and finish, meets EU standards and is mainly intended for food processing industry. It may be utilized in any other operations, where increased hygienic standards along with maximal water savings are required.
Basic technical information
Radius of sensor:self-adjusting
Water inlet:G 1/2“
Outlet:d = 40 mm
Inner dimension of the washbasin:370 x 240 x 150 mm
Adjustable time of water flow:0 – 4 sec. (adjusted to 1 sec.)
AUM 06.1, .2, .TV
Water pressure:0,1 – 1,0 MPa
Power supply:12 V, 50 Hz, or for battery versions 6V (4 x AA battery)
Power requirement:6 VA
 10 VA (AUM 06.2)
Source of power supply:ZAC 1/20 (max. 3 x AUM 06.1, .TV, max. 2 x AUM 06.2)
 ZAC 1/50 (max. 8 x AUM 06.1, .TV, max. 5 x AUM 06.2)
Electricity protection:IP 55
Weight:20 kg
AUM 06.E
Water pressure:0,2 – 0,6 MPa
Recommended pressure:0,3 MPa (without variances and air bubbles)
Power supply:230 V, 50 Hz
Power requirement:3 500 W
Electricity protection:IP 54
Weight:21,5 kg
b
Requirements for setting up the construction
  1. Set-up water inlet as per picture
  2. Set-up outlet d = 40 mm
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC (does not apply to AUM 06.E)
  4. Set-up cable CYKY 3C x 1,5 – 2,5 (for AUM 06.E)
b
Complete delivery
  • sink with support stand
  • outflow arm
  • electronics
  • electromagnetic valve (AUM 06.2 – 2 pcs)
  • corner valve with filter (AUM 06.2 and .TV – 2 pcs)
  • spherical valve (AUM 06.TV)
  • thermostatic valve (AUM 06.TV)
  • through-flow water heater (AUM 06.E)
  • source of power supply ZAC E – 12 V, 50 Hz (AUM 06.E)
  • waste siphon
  • connecting hoses
  • small assembly materials
b
Made to order
  • KR 06 - cantilever with towel container and bin
  • KH 06 - cantilever and outflow for rinsing hose
  • KS 06 - cantilever for ST 01 sanitation box
b

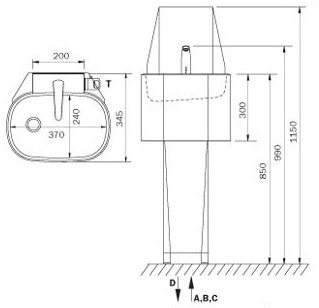

Figure

Figure - AUM 06 sensor-controlled stainless steel free-standing washbasin
b
A -cold water
mixed water
inner pipe G1/2"
D -outlet
B -hot water
inner pipe G1/2"
E -zone of scaning
C -electricity supply
b
b
Product title
AUM 06.1 -
washbasin, middle-size sink, free standing, connection to one water - 12V, 50Hz
AUM 06.1B -
washbasin, middle-size sink, free standing, connection to one water - 6V (4x1,5)
AUM 06.2 -
washbasin, middle-size sink, free standing, connection to hot and cold water - 12V, 50Hz
AUM 06.2B -
washbasin, middle-size sink, free standing, connection to hot and cold water - 6V (4x1,5)
AUM 06.E -
washbasin, middle-size sink, with electric through-flow water heater - 230V, 50Hz
AUM 06.TV -
washbasin, middle-size sink, with thermostatic valve - 12V, 50Hz
AUM 06.TVB -
washbasin, middle-size sink, with thermostatic valve - 6V (4x1,5)
KH -
cantilever and outflow for rinsing hose
KR -
cantilever with towel dispenser and waste bin
KS -
cantilever for knife’s sanitation box
b
Download information about the product
dwgAUM 06.1 data for projectants - ( 98 kB )
dwgAUM 06.1B data for projectants - ( 98 kB )
dwgAUM 06.2 data for projectants - ( 98 kB )
dwgAUM 06.2B data for projectants - ( 98 kB )
dwgAUM 06.E data for projectants - ( 98 kB )
dwgAUM 06.TV data for projectants - ( 98 kB )
dwgAUM 06.TVB data for projectants - ( 98 kB )
