Our cantilevers assure a steady load between the floor and the walling. This allows the wall-hang closets to be fixed onto the walls with a lower load capacity. Cantilevers are not suitable for mounting onto a plaster slabs. It is possible to fix the cantilever by notching or by using a frontal brick walling.

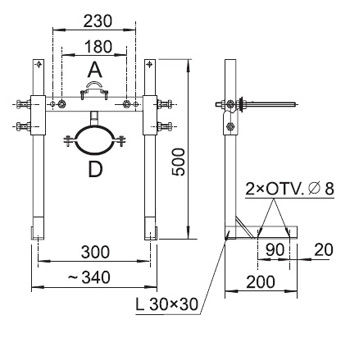

The KZ 1 cantilever is intended for hanging a closet onto bearing pins.

Advantages of the KZ 1:

• for hanging closets with spacing of assembly screws 180 and 230 mm
• setting of the sitting height in the range of 390 - 490 mm (suitable for handicapped modification)
• outflow pipe diameter 90 - 120 mm
• spacing between inlet and outlet
• setting of the distance of connecting armatures of outflow pipes towards other parts of the cantilever
• pipes 135 – 175 mm
