KB1

cantilever for wall hung bidet

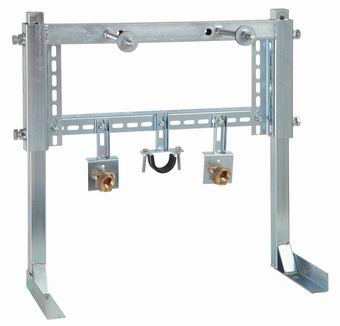

KB1 cantilever for wall hung bidet

Our cantilevers assure a steady load between the floor and the walling. This allows the wall-hang closets to be fixed onto the walls with a lower load capacity. Cantilevers are not suitable for mounting onto a plaster slabs. It is possible to fix the cantilever by notching or by using a frontal brick walling.

The KB 1 cantilever is intended for hanging a bidet bowl onto bearing pins.

Advantages of the KB 1:

- for hanging bidets with spacing of assembly screws 180 and 230 mm

- setting of the sitting height in the range of 390 – 490 mm

- wide range of interact spacing between assembly screws, connecting armatures and the outlet pipe.

Figure

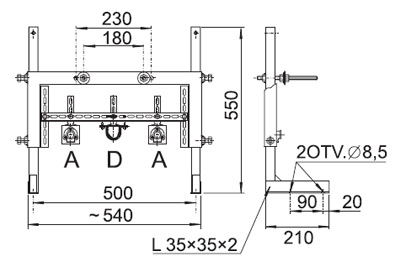

Figure - KB1 cantilever for wall hung bidet
b
A -water inlet
B -water outlet
b
b
Product title
KB1 -
cantilever for wall hung bidet
