		AUP 3 DOMINO ceramic urinal with automatic flushing

AUP 3 is DOMINO ceramic bowl urinal with automatic flushing device using contactless control by means of an optoelectronic sensor that reacts on entering to scanning zone. The bowl urinal is flushed after leaving the scanned area (scanning zone).

The sensor does not react to by-passing persons and is not sensitive to daylight and artificial lighting. After 24 hours of no activity, the bowl urinal automatically flushes.

Trap is not a part of the delivery.

Construction of the flushing system allows easy installation comprising only connection and suspension of the ceramics on prepared wall. Automatický pisoár AUP 3 urinal is intended for social facilities where the user’s comfort and the maintenance of hygiene is required at maximum water savings.

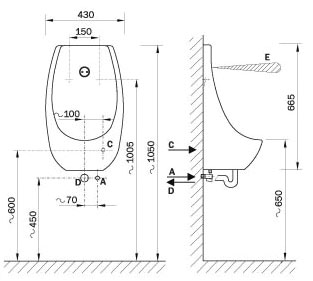

Figure

A -	water inlet G1/2" inner
C -	electricity supply (AUP 3) - cable CYKY 2A x 1,5
D -	outlet - according to the siphon used
E -	zone of scanning

Version types
AUP 3 - automatic urinal supplied with12 V from source ZAC
AUP 3.B - automatic urinal supplied with 6 V from AA batteries (4 pcs.)

Basic technical information
Radius of sensor:	self-adjusting
Water inlet:	G 1/2"
Water pressure:	0,1 - 1,0 MPa (AUP 3)
	0,2 - 0,8 MPa (AUP 3.B)
Outlet:	according to the siphon used
Adjustable time of flushing:	1 - 20 s (adjusted to 5 s)
Power supply:	12 V, 50 Hz (AUP 3)
	6 V DC (AUP 3.B)
Power requirement:	6 VA (AUP 3)
Source of power supply:	ZAC 1/20 (max. 3 x AUP 3)
	ZAC 1/50 (max. 8 x AUP 3)
	AA batteries - 1,5 V (AUP 3.B) - 4 pcs.
Operating time of batteries:	aprox. 1,5 years at 100 flushes a day
Weight:	11 kg

Requirements for setting up the construction
Set-up water inlet , pipe 1/2“ – as per picture Set-up outlet d = 50 mm Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC (not valid for AUP 3.B)

Complete delivery
ceramic DOMINO urinal (Jika) flushing jet with sensor electronics electromagnetic valve corner valve with filter battery holder (AUP 3.B) cylindrical batteries 1,5 V (AUP 3.B) - 4 pcs. connecting hoses screws, wall plugs and hooks - 2 pcs.

Made to order
NP 01 - st.steel urinal screen ZAC - source of power supply 12V, 50Hz

Product title

AUP 3 -

DOMINO ceramic urinal with automatic flushing - 12 V, 50 Hz

AUP 3.B -

DOMINO ceramic urinal with automatic flushing - 6 V

Download information about the product
AUP 3 data for projectants - ( 34 kB )
