		AUS 3, AUS 3P automatic surface shower unit - sensor- or piezo-controlled

AUS 3, AUS 3P automatic surface shower unit - sensor- or piezo-controlled

AUS 3 is an automatic sensor-controlled surface shower unit with a thermostatic valve and START/STOP system. Water starts running after a brief shading of the sensor by a user’s hand. Water stops running after repeated shading of the sensor. If no shading of the sensor takes place, water automatically stops running after laps of preconfigured period of the water flow. The water temperature is set by means of a thermostatic-mixing valve; the water input is controlled by an electromagnetic valve.

AUS 3.P is a shower mixer controlled by means of a resistant piezo-button. The user starts and stops the water by touching the button. If the user does not stop the water it will automatically stop running after a pre-set period of time (time of opening) expires.

Automatic shower units can be used to replace a classic unit with spacing from 100 to 150 mm without any construction work.

The AUS 3 (AUS 3.P) are particularly suitable for company showers, swimming pools, sports premises etc.

AUS 3 and AUS 3.P is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Version types
Tap AUS 3 is produced in two electric power supply versions :
AUS 3 - supplied with a.c. voltage of 12 V from source of power supply ZAC
AUS 3.B - supplied with d.c. voltage of 6 V from cylindrical batteries placed under the ceramics of the urinal. It does not need any external input of power supply. The electronics program guarantees that the electromagnetic valve does not open the water inlet without enough battery capacity to ensure its closing.

Basic technical information
Radius of sensor:	self-adjusting
Water inlet:	G 1/2“
Water pressure:	0,1 – 0,8 MPa (AUS 3.B)
	0,1 – 1,0 MPa (AUS 3)
Adjustable time of inlet opening:	5 – 100 sec. after 5 sec. adjusted to 15 sec.)
Power supply:	12 V, 50 Hz (AUS 3)
	6V (AUS 3.B)
Power requirement:	6 VA
Source of power supply:	ZAC 1/20 (max. 3 x AUS 3, AUS 3.P)
	ZAC 1/50 (max. 8 x AUS 3, AUS 3.P)
	batteries – 1,5 V (AUS 4.B) – 4 pcs.
Operating life of batteries:	approximately 1,5 years at 100 operations a day
Weight:	7,5 kg

Requirements for setting up the construction
Water installation set up as per picture Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC (does not apply to AUS 3.B)

Complete delivery
electromagnetic valve shower bath arm SP 2 stainless steel casing with electronics cabinet thermostatic valve corner valve with filter – 2 pcs connecting hoses battery holder (AUM 3.B) cylindrical batteries 1,5 V (AUM 3.B) – 4 pcs fittings

Made to order
SP 1 - shower arm with water flow of 9 L/min ZAC - source of power supply 12V, 50Hz ZAC - source of power supply 12V, 50Hz

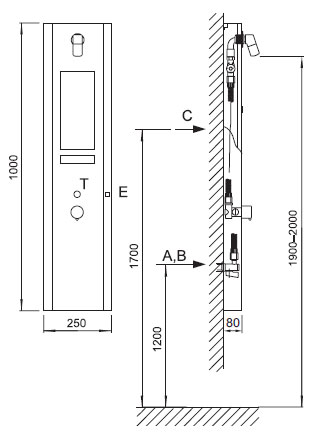

Figure

Figure - AUS 3, AUS 3P automatic surface shower unit - sensor- or piezo-controlled

A -	cold water inner pipe G 1/2"
B -	hot water inner pipe G1/2"
C -	electricity supplay cable CYKY 2Ax1,5
E -	zone of scaning

Product title

AUS 3 -

sensor-controlled shower panel with thermostatic valve and SP2 - 12V, 50Hz

AUS 3.B -

sensor-controlled shower panel with thermostatic valve and SP2 - 6V (4x1,5)

AUS 3.P -

piezo-controlled shower panel with thermostatic valve and SP2 - 12V, 50Hz

Download information about the product
AUS 3 data for projectants - ( 38 kB )
AUS 3P data for projectants - ( 38 kB )
