AUS 2, AUS 2P

automatic subsurface shower unit - sensor- or piezo-controlled

AUS 2, AUS 2P automatic subsurface shower unit - sensor- or piezo-controlled

AUS 2 is an automatic sensor-controlled subsurface shower unit with a thermostatic valve enabling the individual setting of water temperature. Water turns on automatically after a brief shading of the sensor by the user's hand and turns off after repeated shading of the sensor. If repeated shading of the sensor does not occur, water stops flowing after the lapse of adjusted period of time. The water temperature is set by means of a thermostatic-mixing valve.

AUS 2.P is a shower mixer controlled by means of a resistant piezo-button. The user starts and stops the water by touching the button. If the user does not stop the water it will automatically stop running after a pre-set period of time (time of opening) expires.

The AUS 2 and AUS 2.P automatic shower units are particularly suitable for company showers, swimming pools, sports premises etc.

AUS 2 and AUS 2.P are manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Basic technical information
Radius of sensor:self-adjusting
Water inlet:G 1/2“
Water pressure:0,1 – 1,0 MPa
Adjustable time of inlet opening:5 – 100 sec. after 5 sec. (adjusted to 15 sec.)
Power supply:12 V, 50 Hz
Power requirement:6 VA
Source of power supply:ZAC 1/20 (max. 3 x AUS 2, AUS 2.P)
 ZAC 1/50 (max. 8 x AUS 2, AUS 2.P)
Weight:3,5 kg
b
Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 285 x 165 x 70 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC
b
Complete delivery
  • installation casket
  • input and output bolting
  • stainless steel casing with electronics cabinet
  • electromagnetic valve
  • thermostatic valve
  • covering metal assembly plate
  • connecting hoses
  • fittings
b
Made to order
  • SP 1 - shower arm with water flow of 9 L/min
  • SP 2 - shower arm with water flow of 7 L/min
  • SP 3 - shower arm with water flow of 7 L/min
  • ZAC - source of power supply 12V, 50Hz
b

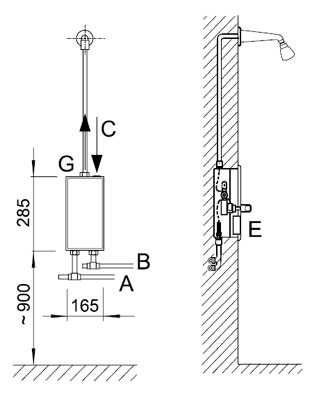

Figure

Figure - AUS 2, AUS 2P automatic subsurface shower unit - sensor- or piezo-controlled
b
A -cold water inner pipe G 1/2"E -zone of scaning
B -hot water inner pipe G1/2"G -water inlet into shower
C -electricity supplay cable CYKY 2Ax1,5
b
Shower bath arm SP 1
Figure - AUS 2, AUS 2P automatic subsurface shower unit - sensor- or piezo-controlled
b
Shower bath arm SP 2
Figure - AUS 2, AUS 2P automatic subsurface shower unit - sensor- or piezo-controlled
b
b
Product title
AUS 2 -
with thermostatic valve, sensor-controlled - 12V, 50Hz
AUS 2.P -
with thermostatic valve, piezo-controlled - 12V, 50Hz
b
Download information about the product
dwgAUS 2 data for projectants - ( 113 kB )
dwgAUS 2P data for projectants - ( 26 kB )
