		AUM 4 stainless steel wall mounted sensor-controlled unit

AUM 4 is a stainless steel wall mounted sensor-controlled unit in flat finish. Water turns on automatically when the user's hands are within the sensor's range and turns off when they have been removed. Water keeps on running for a short period of time after the hands have been removed from the scanning zone – after-flow delay time. The water stops flowing automatically if the sensor has been screened for longer than 30 seconds. No necessity for construction work when replacing a standard tap by AUM 4 unit.

Tap AUM 4 is produced in two electric power supply versions:

AUM 4 - supplied with a.c. voltage of 12 V from source of power supply ZAC

AUM 4.B - supplied with d.c. voltage of 6 V from cylindrical batteries placed under the casing of the tap. It does not need any external input of power supply. The electronics program guarantees that the electromagnetic valve does not open the water inlet without enough battery capacity to ensure its closing.

Version types
AUM 4.1 and AUM 4.1B - for one water
AUM 4.2 and AUM 4.2B - for hot and cold water
AUM 4.TV and AUM 4.TVB - with thermostatic valve

The AUM 4 automatic tap, in its construction and finish, meets EU standards and is mainly intended for food operations.

Basic technical information
Radius of sensor:	self-adjusting
Water inlet:	G 1/2“
Water pressure:	0,1 – 0,8 MPa (AUM 4.B)
	0,1 – 1,0 MP (AUM 4)
After-flow period:	0 – 4 sec. (adjusted to 1 sec.)
Power supply:	12 V, 50 Hz (AUM 4)
	6 V DC (AUM 4.B)
Power requirements:	6 V (AUM 4)
Source of power supply:	ZAC 1/20 (max. 3 x AUM 4)
	ZAC 1/50 (max. 8 x AUM 4)
	batteries – 1,5 (AUM 4.B) – 4 pcs.
Operating life of batteries:	approx. 1,5 years at 100 operations a day
Weight:	3,0 kg

Requirements for setting up the construction
Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC (does not apply to AUM 4) Assembly of the AUM 4 surface tap does not require any particular preparation. The construction of the tap enables its connection onto existing outlets of cold and hot water with spacing from 90 mm to 160 mm.

Complete delivery
assembly frame casing outflow arm electronics electromagnetic valve corner valve (AUM 4.2, .2B, .TV and .TVB – 2 pcs) mixing T – part with backflow valves (AUM 4.2 and .2B) thermostatic valve with backflow valves (AUM 4.TV and .TVB) battery holder (AUM 4.B) cylindrical batteries 1,5 V (AUM 4.B) - 4 pcs connecting hoses fittings

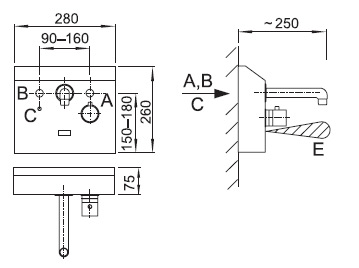

Figure

A -	cold water (AUM 4.2, .2B, .TV, .TVB) MIXED WATER (AUM 4.1, .1B) Inner pipe G1/2"
B -	hot water (AUM 4.2, .2B, .TV, .TVB) Inner pipe G1/2"
C -	electricity supplay (AUM 4.1, .2, TV) cable CYKY 2Ax1,5
E -	zone of scaning

Product title

AUM 4.1 -

for connection to one water - 12V, 50Hz

AUM 4.1B -

for connection to one water - 6V (4x1,5)

AUM 4.2 -

for connection to hot and cold water - 12V, 50Hz

AUM 4.2B -

for connection to hot and cold water - 6V (4x1,5)

AUM 4.TV -

for connection to hot and cold water with thermostatic valve - 12V, 50Hz

AUM 4.TVB -

for connection to hot and cold water with thermostatic valve - 6V (4x1,5)

Download information about the product
AUM 4 data for projectants - ( 37 kB )
