solar shower column

SPS 03 solar shower column

New solar shower column SPS 03 is concepted in the same way as the original SPS 02 solar shower column. Also the new column includes the water reservoir where the water is heated by the sun – part of the column is painted black to improve heating effect.

In comparison to SPS 02 is the capacity of SPS 03 reservoir double - 60 litres. The column body is round and therefore is better accessible to the sunlight and enables faster water heating.

High quality complements and design predetermine the column mainly for demanding clientele.

Complete delivery of SPS 03 includes also the stainless steel anchoring construction which is emebeded in concrete base. This enables fast assembly and disassembly of the column.

SPS 03 is suitable especially for private swimming pools or the outdoor saunas.

SPS 03 is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Basic technical information
Water inlet:G ½ “
Reservoir capacity:60 l
Water pressure:0,1 – 1 MPa
Water flow:10 l/min
Average water flow:200 mm
Height:2070 mm
b
Requirements for setting up the construction
  1. Fix the anchoring construction into the hole 500 x 500 x 160
  2. Set-up water inlet G ½“
b
Complete delivery
  • stainless steel shower column
  • shower arm
  • lever mixer tap
  • anchoring construction
  • connecting material
b
Figure

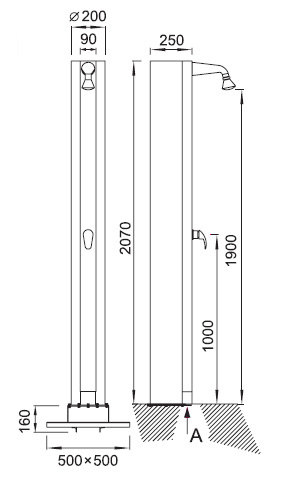

Figure - SPS 03 solar shower column
b
A -water inlet vody G 1/2" male thread
b
b
Product title
SPS 03 -
solar shower column
b
Download information about the product
dwgSPS 03 data for projectants - ( 57 kB )
